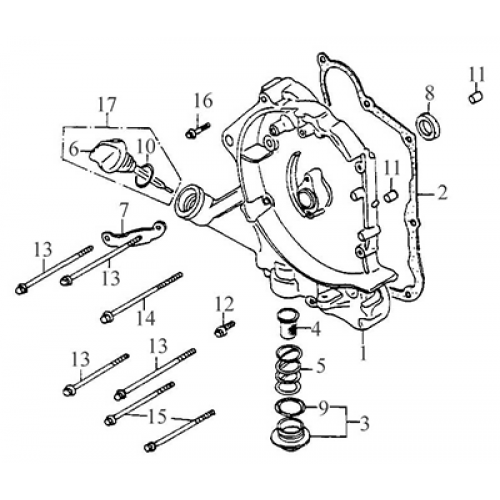

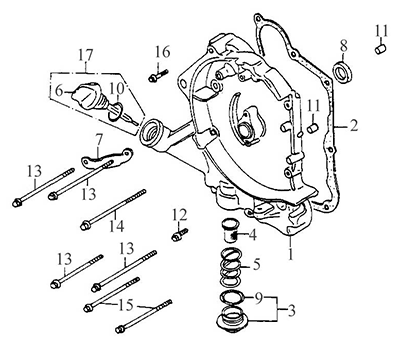

Right Crankcase Cover (Thunder Bike 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Crankcase Cover
11330-121-000
|
$85.01 | ||
| 2 |
Gasket,R. Crankcase Cover
11393-120-000
|
$4.18 | ||
| 3 |
Cap Ass'Y
12361-120-000
|
$8.79 | ||
| 4 |
Oil Filter Screen
15421-120-000
|
|||
| 5 |
Oil Filter Spring
15426-120-000
|
$1.67 | ||
| 6 |
Oil Level Gauge
15650-120-000
|
$5.86 | ||
| 7 |
Clamp,A.C.Generator Cord
32961-120-000
|
$1.67 | ||
| 8 |
Oil Seal, 19.8*30*5
96500-19305
|
$5.25 | ||
| 9 |
Oil Ring, 30.8mm
91330-120-000
|
$4.18 | ||
| 10 |
Oil Ring, 18*3
91318-108-000
|
$0.84 | ||
| 11 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 12 |
Hex Flange Bolt, 6*32
96000-06032-08C
|
$1.34 | ||
| 13 |
Hex Washer Face Bolt, 6*95
96000-06095-08C
|
$3.35 | ||
| 14 |
Hex Washer Face Bolt, 6*100
96000-06100-08C
|
$3.35 | ||
| 15 |
Hex Washer Face Bolt, 6*110
96000-06110-08C
|
$1.67 | ||
| 16 |
Hex Flange Bolt, 6*40
96000-06040-08C
|
$1.34 | ||
| 17 |
Oil Gauge Ass'Y
1565A-120-000
|
