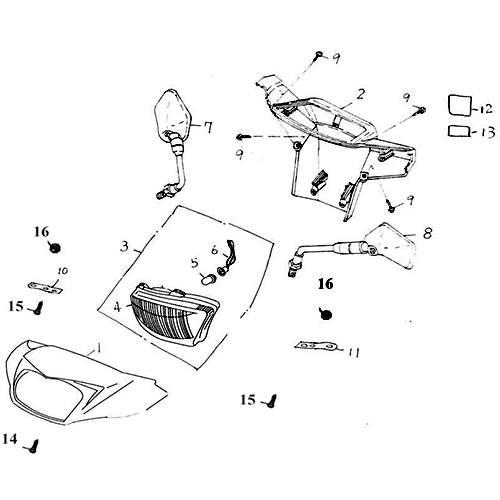

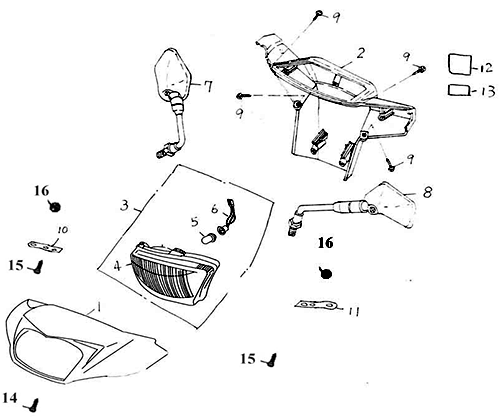

Headlight (DOT), Mirrors (Silver Fox (4 Stroke))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Light Case Cover
64211-188-000
|
|||
| 2 |
Speedometer Case
53205-107-000
|
$15.82 | ||
| 3 |
Head Light Ass'Y (Dot)
33100-188-000
|
$53.48 | ||
| 4 |
Head Light Cover
33110-188-000
|
$28.53 | ||
| 5 |
Head Light Bulb, 35/35W
34901-188-000
|
$18.10 | ||
| 6 |
Head Light Socket
33111-188-000
|
$10.54 | ||
| 7 |
R.Rear View Mirror
88110-116-001
|
$21.09 | ||
| 8 |
L.Rear View Mirror
88120-116-001
|
$21.09 | ||
| 9 |
Tapping Screw Truss Head Phillps, 5*16
93903-05016K
|
$0.72 | ||
| 10 |
F/R Signal Bracket
33403-188-000
|
$5.49 | ||
| 11 |
F/L Signal Bracket
33406-188-000
|
$5.13 | ||
| 12 |
Sticker Warning
87706-125-000
|
|||
| 13 |
Tire Sticker
87707-125-000
|
|||
| 14 |
Pan Flat Head Phillips Bolt, 4*8mm
93701-04008
|
|||
| 15 |
Pan Phillips Bolt, 3*8
93500-03008C
|
$2.01 | ||
| 16 |
Hex Nut, 3mm
94001-03000C
|
$0.84 |
