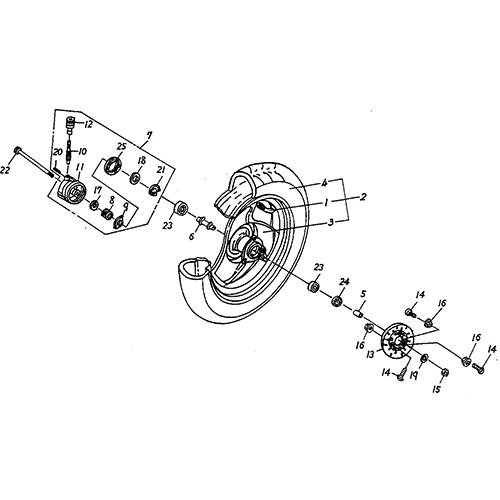

Front Wheel (DOT) (Silver Fox (4 Stroke))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Air Nozzle
42616-104-000
|
$7.32 $5.49 | ||
| 2 |
Front Wheel Set
42700-252-000
|
|||
| 3 |
Front Whell Comp
42701-252-000
|
|||
| 4 |
Front/Rear Tire K413 130/90-10
42811-107-00A
|
$48.51 $36.38 | ||
| 5 |
Front Collar, 10.2*17*20.2
44311-107-000
|
$5.43 $4.08 | ||
| 6 |
Front Spacer Tube, 16*74.6
44620-109-000
|
$3.62 $2.72 | ||
| 7 |
Speedometer Gear Ass'Y
44806-110-000
|
$44.12 $33.09 | ||
| 8 |
Speedometer Main Gear, 16T
44811-110-000
|
$12.68 $9.51 | ||
| 9 |
Speedometer Gear Bracket
44812-107-000
|
$4.18 $3.14 | ||
| 10 |
Speedometer Secondary Gear, 8T
44813-107-000
|
$6.34 $4.75 | ||
| 11 |
Speedometer Gear External Cover
44816-107-000
|
$8.88 $6.66 | ||
| 12 |
Speedometer Gear Copper Head
44818-107-000
|
$4.35 $3.26 | ||
| 13 |
Front Brake Disc, D155
45015-107-000
|
$85.01 $63.76 | ||
| 14 |
Brake Disc Hex Socket Bolt, 10*20
45016-107-000
|
$2.17 $1.63 | ||
| 15 |
Nylon Nut, 10mm*1.25
90350-10000C
|
$1.92 $1.44 | ||
| 16 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 $0.94 | ||
| 17 |
Plain Washer, 16.5*22*1
94101-1622010K
|
$0.71 $0.53 | ||
| 18 |
Plain Washer, 16.5*28*1
94101-1628010A
|
|||
| 19 |
Plain Washer, 10*22*1.5
94101-1022020
|
$0.75 $0.56 | ||
| 20 |
Split Spring Pin, 2*14
94305-20140
|
$1.09 $0.82 |
