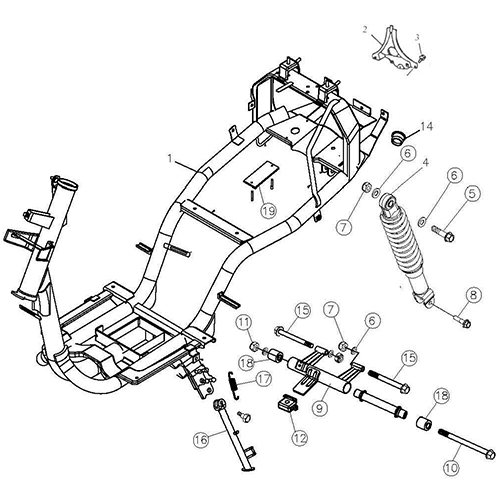

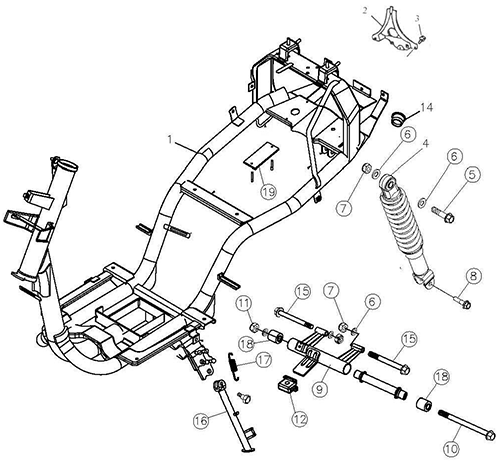

Frame Body (DOT) (Silver Fox (4 Stroke))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-291-000
|
|||
| 2 |
Tail Light Fix Bracket
50357-116-000
|
$19.11 | ||
| 3 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 4 |
Unit Ass'Y Cushion Rear
52400-105-000
|
|||
| 5 |
Hex Bolt, 10*40
92000-10040-17C
|
|||
| 6 |
Plain Washer, 10*22*1.5
94101-1022020
|
$0.75 | ||
| 7 |
Hex Washer Face Bolt, 8*32
96000-08032-12B
|
$4.18 | ||
| 8 |
Bracket Engine Ass'Y
50350-252-000
|
|||
| 9 |
Hex Washer Face Bolt, 10*240
96000-10240-14C
|
|||
| 10 |
Nylon Nut, 10mm*1.25
90350-10000C
|
$1.92 | ||
| 11 |
Engine Collar
50358-252-000
|
|||
| 12 |
Hex Washer Face Bolt, 10*240
96000-10240-14G
|
|||
| 13 |
Hex Washer Face Bolt, M10*76
96000-10075-14G
|
|||
| 14 |
Side Stand
50530-143-000
|
|||
| 15 |
Side Stand Reset Spring
95014-71404
|
$5.27 | ||
| 16 |
I.D. Plate
50110-101-00D
|
|||
| 17 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 18 |
Aluminum Plate
50110-141-000
|
|||
| 19 |
Sticker Warning
87706-125-000
|
|||
| 20 |
Tire Sticker
87707-125-000
|
