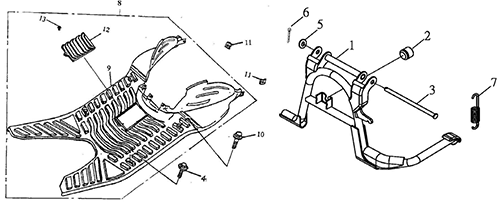

Floor Panel, Main Stand (Silver Fox (4 Stroke))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Stand Comp
50500-252-000
|
|||
| 2 |
Rubber Damper
95011-208-000
|
|||
| 3 |
Main Stand Fix Shaft, 9*180
50503-251-000
|
|||
| 4 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 5 |
Plain Washer, 10.5*18*0.5
94101-1018005A
|
$0.42 | ||
| 6 |
Cotter Pin, 2*25
94201-20250B
|
$2.01 | ||
| 7 |
Main Stand Reset Spring
95014-71602
|
$4.18 | ||
| 8 |
Floor Panel Ass'Y(W/Battery Cover)
64310-116-000
|
$77.88 | ||
| 9 |
Floor Panel Grey
64310-116-001
|
$32.95 | ||
| 10 |
Hex Bolt, 6*30
92000-06030-10
|
|||
| 11 |
U Plate Nut, 4mm
90344-04000K
|
$0.84 | ||
| 12 |
Battery Cover
64311-116-000
|
$19.77 | ||
| 13 |
Pan Flat Head Phillips Bolt
93701-06010
|
$1.34 |
