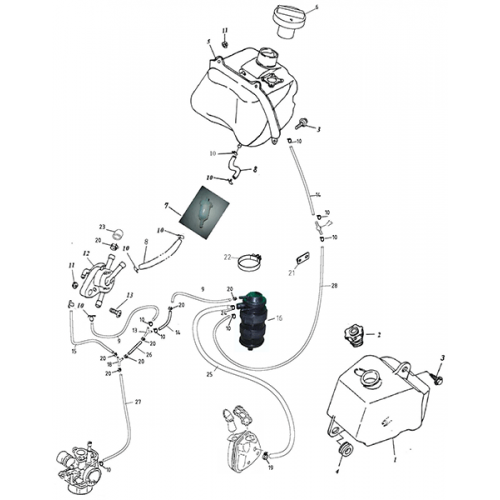

Fuel Tank, Oil Tank (Lambretta UNO50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Oil Tank(Rev.1)
55100-116-000
|
$36.56 | ||
| 2 |
Oil Tank Cap
55105-101-000
|
$6.59 | ||
| 3 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 4 |
Grommet
83553-116-000
|
$1.34 | ||
| 5 |
Fuel Tank Comp
17500-248-000
|
$132.37 | ||
| 6 |
Fuel Tank Cap
17620-248-000
|
$32.95 | ||
| 7 |
Petrol Filter
16952-145-000,16952-101-000
|
|||
| 8 |
Tube, 4.8*8*50
94400-0408050
|
$0.67 | ||
| 9 |
Tube, 4.8*8*160
94400-0408160
|
|||
| 10 |
Clip, 8*0.8
94510-08000
|
$0.69 | ||
| 11 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 12 |
Fuel Cup
16950-116-000
|
|||
| 13 |
Pan Flat Head Phillips Bolt, 6*15
93701-06015S
|
$1.67 | ||
| 14 |
Tube, 4.5*8.5*75
94400-0408075
|
|||
| 15 |
Tube, 4.5*8.5*100
94400-0408100
|
$2.76 | ||
| 16 |
Canister Comp., 10DV001AP-00
17310-190-000
|
|||
| 18 |
3-Way Connector
16139-120-000
|
$4.11 | ||
| 19 |
Clamp, 14mm
94514-14000
|
|||
| 20 |
Spring Clamp
94513-08000
|
$1.26 | ||
| 21 |
Secondary Oil Tank Bracket
54541-215-000
|
