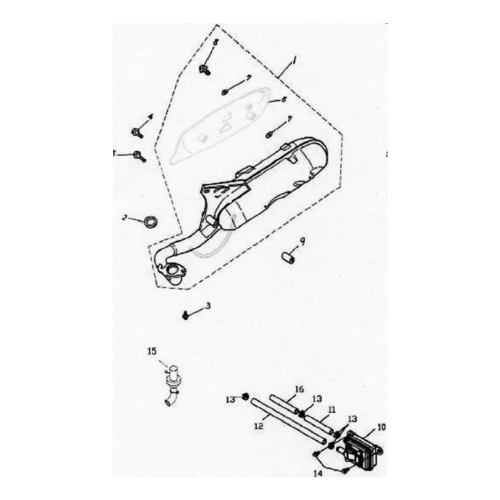

Exhaust
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Assy'S
18300-135-000
|
$240.00 | ||
| 2 |
Exhaust Pipe Gasket
18291-104-000
|
$4.69 | ||
| 3 |
Hex Head Phillips Bolt, 6*18
92001-06018-10B
|
$1.51 | ||
| 4 |
Hex Washer Face Bolt
96000-08048-12K
|
$2.68 | ||
| 5 |
Hex Washer Face Bolt
96000-08065-12K
|
$1.67 | ||
| 6 |
Muffler Protector
18301-116-00A
|
|||
| 7 |
Muffler Shroud Gasket, 6mm
18292-104-000
|
$0.67 | ||
| 8 |
Hex Washer Face Bolt, 6*12
96000-06012-08
|
|||
| 9 |
Collar, 10*15*23
18302-116-000
|
$2.68 | ||
| 10 |
Reed Valve Comp
17410-116-000
|
|||
| 11 |
Reed Valve Comp In. Pipe
17411-116-00A
|
$7.03 | ||
| 12 |
Reed Valve Comp Ex. Pipe, 130mm
17412-116-000
|
$6.22 | ||
| 13 |
Spring Clamp, 16mm
94513-16000
|
$2.01 | ||
| 14 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 15 |
Catch Tank Comp
1736A-175-000
|
$13.18 | ||
| 16 |
Exhaust Return Oil Tube A
17197-128-000
|
$3.63 |
