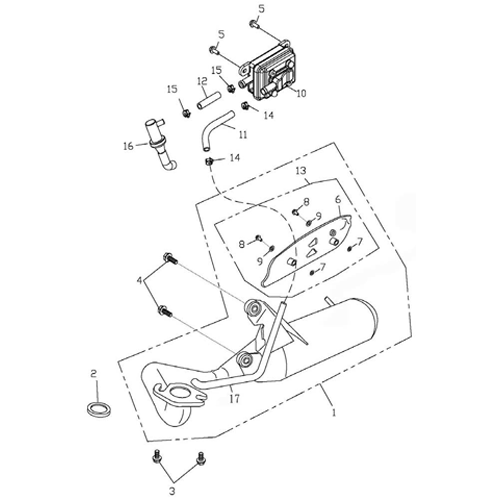

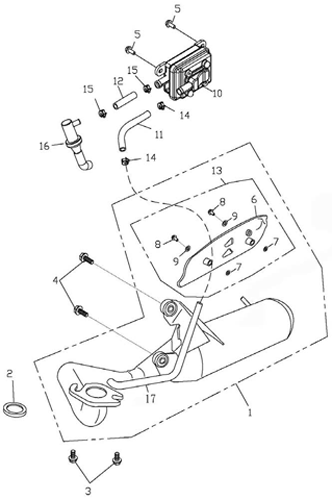

Exhaust (Adly PANTHER-50 '06)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Assy, CATA
18300-141-000BK
|
|||
| 2 |
Exhaust Pipe Gasket
18291-116-000
|
$4.99 | ||
| 3 |
Hex Head Phillips Bolt, 6*18
92001-06018-10B
|
$1.51 | ||
| 4 |
Hex Washer Face Bolt, 8*40
96000-08040-12K
|
$1.59 | ||
| 5 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 6 |
Muffler Protector(Black)
18301-116-00ABK
|
|||
| 7 |
Paper Plain Washer, 6*17*3
94114-0617030
|
$0.84 | ||
| 8 |
Pan Philps Bolt, 6*20
93801-06020Z
|
$3.35 | ||
| 9 |
Paper Plain Washer, 8.5*17*2
94114-0817020
|
$0.84 | ||
| 10 |
Reed Valve Comp
17410-116-000
|
|||
| 11 |
Reed Valve Comp Ex. Pipe
17412-265-000
|
$6.34 | ||
| 12 |
Reed Valve Comp In. Pipe, 50mm
17411-501-000
|
|||
| 13 |
Muffler Protector Comp
18310-116-00ABK
|
|||
| 14 |
Spring Clamp, 18mm
94513-18000
|
|||
| 15 |
Spring Clamp, 16mm
94513-16000
|
|||
| 16 |
Catch Tank Comp
1736A-175-000
|
$13.18 | ||
| 17 |
Exhaust Pipe,Front
18313-141-000
|
