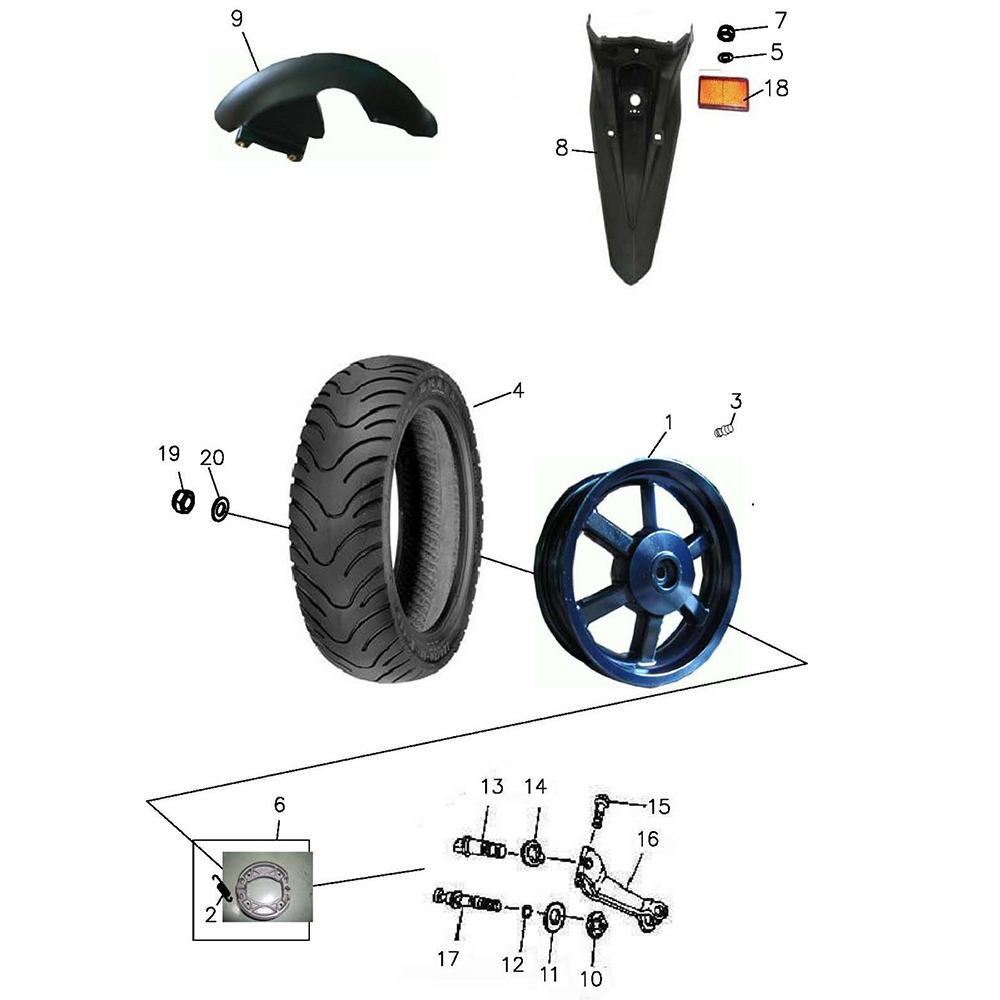

Rear Wheel – Aluminum Rim
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Al. Rear Rim, 3.5x12
42801-381-000MK
|
|||
| 2 |
Rear Brake Shoe Strain Spring
43151-110-000
|
$0.00 | ||
| 3 |
Air Nozzle
42616-104-000
|
$7.32 | ||
| 4 |
Front/Rear Tire K413 130/70-12
42711-381-000
|
|||
| 5 |
PLAIN WASHER(WHITE ZINC)
94101-0615010K
|
|||
| 6 |
Rear Brake Shoe Ass'Y
43120-110-001
|
$34.64 | ||
| 7 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 8 |
Rear Fender
80118-381-000
|
|||
| 9 |
Rear Fender
80115-154-001
|
|||
| 10 |
Nylon Nut, M8
90350-08000G
|
|||
| 11 |
Plain Washer, 8*15*1.5
94101-0815015C
|
$0.50 | ||
| 12 |
Oil Ring, 7.5*1.5
91307-101-000
|
$0.84 | ||
| 13 |
Brake Cam Shaft
43141-101-001
|
$11.72 | ||
| 14 |
Indicator Plate
43145-104-000
|
$1.42 | ||
| 15 |
Hex Flange Bolt, 6*65
96000-06030-10C
|
$1.33 | ||
| 16 |
Rear Brake Arm
43410-116-000
|
$9.52 | ||
| 17 |
Rear Brake Fix Shaft
45110-116-000
|
$9.52 | ||
| 18 |
Reflector (Red), E9-02. 1269
33741-381-000RD
|
|||
| 19 |
Nylon Nut, M14
90350-14000G
|
$2.59 | ||
| 20 |
Plain Washer, 15*29*3
94105-1529030G
|
$2.85 |
