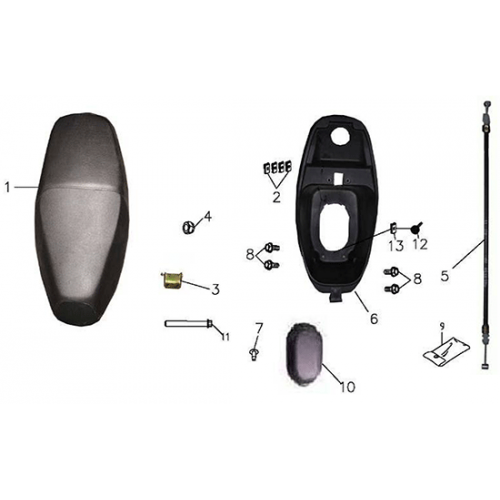

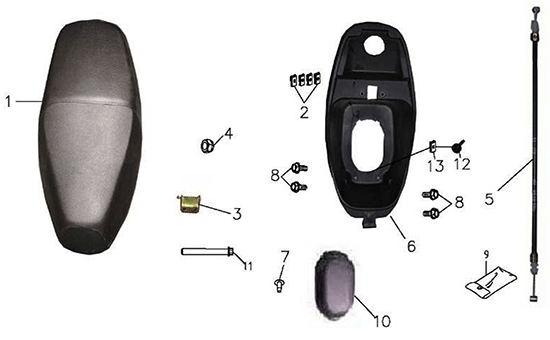

Seat (45km) (Adly GTA-50 2010)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat Ass'Y (Black)
77200-381-00A
|
|||
| 2 |
U Plate Nut, 4mm
90344-04000K
|
$0.84 | ||
| 3 |
Seat Bracket
77201-381-000
|
|||
| 4 |
Hex Flange Nut, 6mm
94050-06000C
|
|||
| 5 |
Seat Release Cable
77212-381-000
|
|||
| 6 |
Helmet Box
77207-381-000
|
|||
| 7 |
Tapping Screw Truss Head Phillips, 4*12
93903-04012K
|
|||
| 8 |
Hex Bolt (Black Zinc), 6*20
92000-06020-10K
|
$0.67 | ||
| 9 |
Tool Bag
50120-101-000
|
$8.05 | ||
| 10 |
Cover, Carburatetor Maintenance
77202-381-000
|
|||
| 11 |
Seat Fix Shaft
77203-381-000
|
|||
| 12 |
Knob Boit, M5*20
90122-381-000
|
|||
| 13 |
U Plate Nut, 5mm
90345-05000
|
