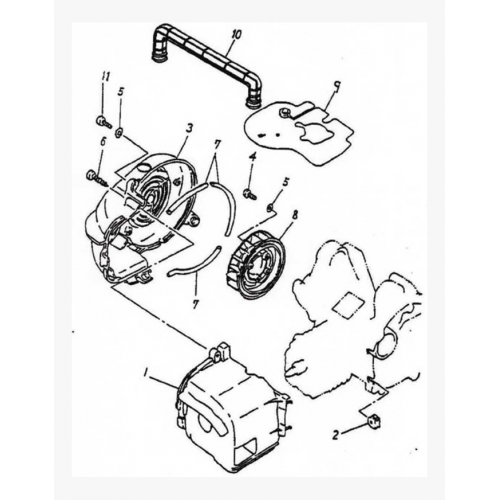

Fan Shroud
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Air Shroud
19620-116-000
|
|||
| 2 |
Grommet
83552-116-000
|
$1.67 $1.26 | ||
| 3 |
Generator Cover (Hole)
19610-116-001
|
$22.99 $17.24 | ||
| 4 |
Hex Socket Bolt, 6*15
91000-06015B
|
$1.14 $0.85 | ||
| 5 |
Plain Washer, 6*13*1
94101-0613010B
|
$0.50 $0.38 | ||
| 6 |
Tapping Screw Truss Head Phillips
93903-06040B
|
$0.00 | ||
| 7 |
Damper
17632-116-000
|
|||
| 8 |
Fan
19510-116-000
|
|||
| 9 |
Deflector
55122-116-000
|
$5.24 $3.93 | ||
| 10 |
Tube Breather
11211-116-000
|
|||
| 11 |
Hex Socket Bolt, 6*20
91000-06020B
|
$0.67 $0.50 | ||
| 12 |
Generator Outter Cover
19612-145-000
|
$8.39 $6.29 | ||
| 13 |
Tapping Screw Truss Head Phillips, 5*12
93903-05012K
|
$0.59 $0.44 |
