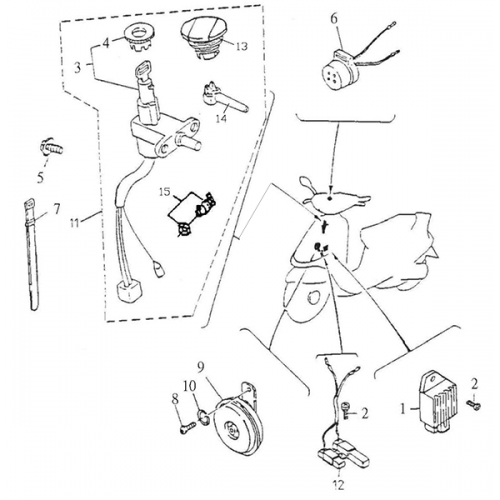

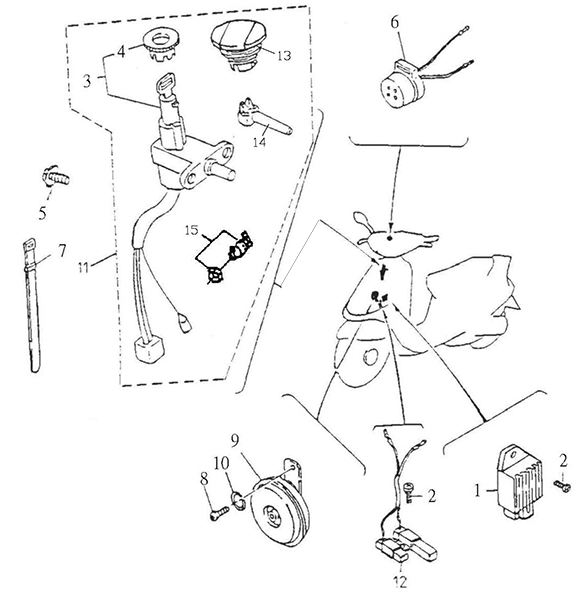

Electrical Equipment (Adly Super Sonic SS-125D)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Regulater Rectifier
31600-120-0A0
|
$44.12 | ||
| 2 |
Pan Phillips Bolt, M5*16
93500-05016B
|
$0.59 | ||
| 3 |
Main Switch Ass'Y
35100-125-000
|
$59.99 | ||
| 4 |
Switch Cap
35111-118-000
|
$4.69 | ||
| 5 |
Ladder Bolt, 6*12*3.8
90111-06012-10K
|
$1.67 | ||
| 6 |
Flasher Relay, 12V 40W
38301-107-0AC
|
$16.99 | ||
| 7 |
Cable Tie, 4.8*250m/m
90669-101-00A
|
$0.50 | ||
| 8 |
Pan Phillips Bolt, 6*12
93500-06012B
|
$0.50 | ||
| 9 |
Horn (E-Mark), 12V NO0037
38110-101-001
|
$13.69 | ||
| 10 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 | ||
| 11 |
Adly Scooter Key Set
35010-125-001
|
|||
| 12 |
Resistor Comp
35400-120-0A0
|
$15.82 | ||
| 13 |
Fuel Tank Cap
17620-125-000
|
|||
| 14 |
Seat Lock Ass'Y
77230-116-000
|
$29.00 | ||
| 15 |
Inner Box Lock
81142-101-000
|
