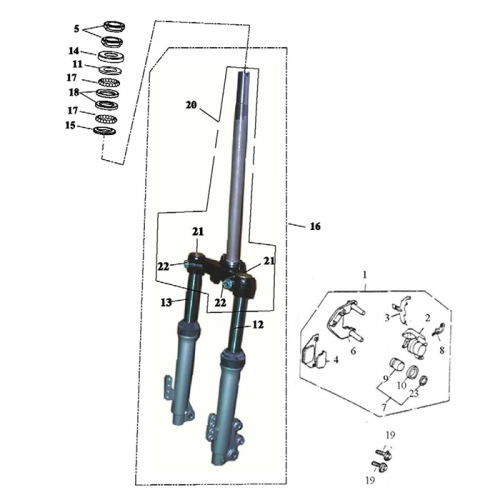

Front Fork – SPCC
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Brake Caliper Ass'Y
45000-127-000G
|
$94.93 | ||
| 2 |
Brake Caliper
45010-125-000
|
|||
| 3 |
Snubber Support
45025-119-000
|
|||
| 4 |
Brake Pad
45120-119-000
|
$39.99 | ||
| 5 |
Spaner Nut, 25mm
94071-25000B
|
$4.83 | ||
| 6 |
Bracket Caliper(Left)
43001-125-000
|
|||
| 7 |
Caliper Pistow Ass'Y
45040-125-000
|
$17.12 | ||
| 8 |
Breed Screw Kit
45031-125-000
|
|||
| 9 |
Caliper Pistow
45046-125-000
|
|||
| 10 |
Caliper Seal
45041-125-000
|
|||
| 11 |
Late Cone Strg Top #2
53212-101-000
|
$11.72 | ||
| 12 |
Right Tube Assy
53030-125-00B
|
|||
| 13 |
Left Tube Assy
53130-125-00B
|
|||
| 14 |
Steer Ing Stem Dust Cover
50301-101-000
|
$4.18 | ||
| 15 |
Race,Ball #5
53215-101-000
|
$12.65 | ||
| 16 |
Front Fork Ass'Y
51100-125-0AB
|
$247.36 | ||
| 17 |
Steel Ball
96211-101-000
|
$5.86 | ||
| 18 |
Lathe Strg Inner #3
53213-101-001
|
$12.19 | ||
| 19 |
Hex Washer Face Bolt, 8x35
96000-0803512CL
|
$2.01 | ||
| 20 |
Steering Stem With Bracket Assy
51109-125-000
|
