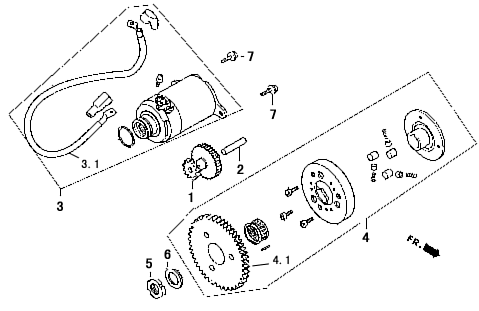

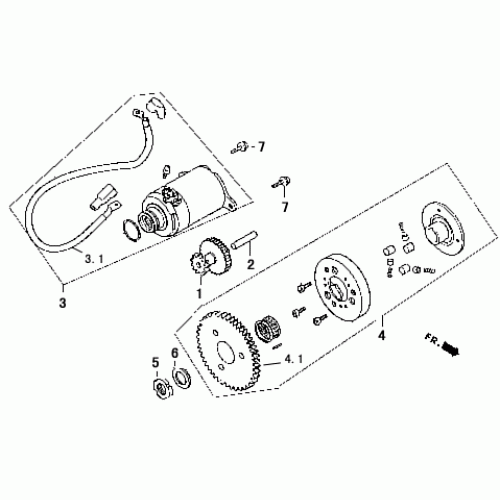

Starting Motor (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Gear, Starter Reduction
28101-SAA0-0000
|
$22.09 | ||
| 3 |
Motor Assy., Starter
31200-SAA0-0000
|
$69.23 | ||
| 3.1 |
Cable, Starter Motor
32410-SAA0-0000
|
|||
| 4 |
Clutch Assy., Starter
28100-SAA0-0000
|
$46.82 | ||
| 4.1 |
Gear, Starter Clutch
28110-SAA0-0000
|
$25.10 | ||
| 5 |
Nut, Lock 22mm
90241-SAA0-0000-0B
|
$2.23 | ||
| 6 |
Washer, Thrust 22x31x2
94110-22E01-0E
|
$0.63 | ||
| 7 |
Bolt, Flange
96010-06016-0B
|
$1.05 |
