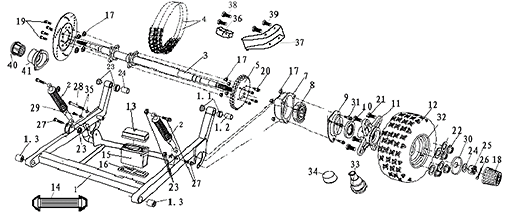

Rear Wheel (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
rear swing arm comp.
5212A-BCA0-0020
|
|||
| 1.1 |
Bush, Left/Right Side
52148-BCA0-0000
|
$2.79 | ||
| 1.2 |
Spacer, Center
52149-BCA0-0000
|
$6.97 | ||
| 1.3 |
Bush, Rubber
52147-BCA0-0000
|
|||
| 2-3 |
absorber assy. rr.
52400-BCA0-0002
|
$69.23 | ||
| 2-1 |
Shock Absorber
52400-BCA0-0000
|
|||
| 2-2 |
Shock Absorber, Rear
52400-BCA0-0001
|
$69.23 | ||
| 3 |
axle comp. rr.
41000-BCA0-0030
|
|||
| 4 |
Drive Chain 10A
40530-BCA0-0000
|
|||
| 5 |
Sprocket, Rear Axle
41200-BCA0-0000
|
$30.00 | ||
| 6 |
Seal, Dust 34x50-7
91203-BCA0-0000
|
$4.88 | ||
| 7 |
Housing Comp., Rear Axle Bridge
42701-BCA0-0000
|
|||
| 8 |
bearing 6206 2rs
96100-62060-2RS
|
|||
| 9 |
Cover, Rear Axle Bridge Housing
42702-BCA0-0000
|
$10.46 | ||
| 10 |
Seal,Dust 28x42-7.3
91204-BCA0-0000
|
|||
| 11 |
Wheel Hub, Rear
4260A-BCA0-0010
|
|||
| 12-1 |
Rear Tire 22x11-10
42710-BCA0-0000
|
|||
| 12-2 |
Rear Tire 22x11-10
42710-BCB0-0000
|
|||
| 13 |
Cover, Battery
50320-BCA0-0010
|
|||
| 14 |
Band, Battery
50329-BCA0-0000
|
