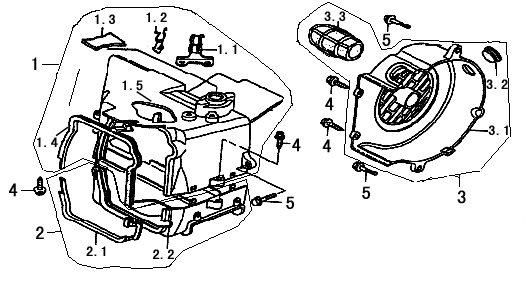

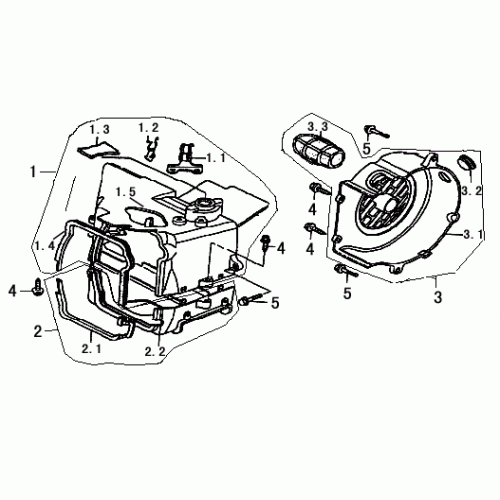

Fan Cover/Shroud (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Shroud Assy., B
1963A-SAA0-0000
|
$12.55 | ||
| 1.1 |
Clamp, Breather Tube
11384-SAA0-0000
|
|||
| 1.2 |
Clip, High Tension Cord
19632-SAA0-0000
|
|||
| 1.3 |
Grommet, Shroud B
19634-SAA0-0000
|
|||
| 1.4 |
Seal, Shroud B
19635-SAA0-0000
|
|||
| 1.5 |
Shroud Comp., B
19630-SAA0-0000
|
|||
| 2 |
Shroud Assy., A
1962A-SAA0-0000
|
$12.55 | ||
| 2.1 |
Seal, Shroud A
19625-SAA0-0000
|
|||
| 2.2 |
Shroud A
19621-SAA0-0000
|
|||
| 3 |
Cover Assy., Fan
1961A-SAA0-0000
|
$18.83 | ||
| 3.1 |
Cover Comp., Fan
19610-SAA0-0000
|
$18.83 | ||
| 3.2 |
Crommet B, Side Panel
19633-SAA0-0000
|
|||
| 3.3 |
Duct, Carburetor Cooling
19615-SAA0-0000
|
|||
| 4 |
Screw, Tapping 5x16
93910-50160-0E
|
$0.28 | ||
| 5 |
Bolt, Flange 6x25
96010-06025-0B
|
$0.70 |
