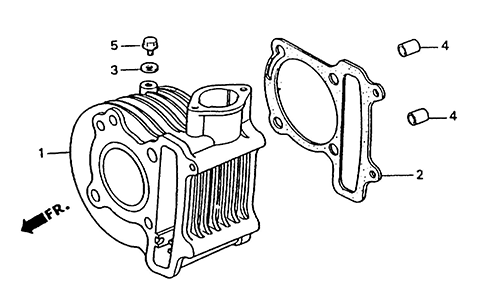

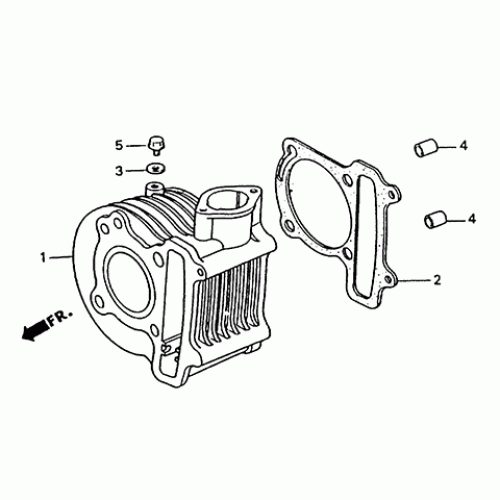

Cylinder Comp (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Comp.
12100-SBM0-0000
|
$80.96 | ||
| 2-1 |
Gasket, Cylinder
12191-SBM0-E010
|
$5.56 | ||
| 2-2 |
Gasket, Cylinder
12191-SBM0-E000
|
$5.56 | ||
| 3 |
Washer, Sealing 6.5mm
94110-07E02-CU
|
$0.28 | ||
| 4 |
Pin, Dowel
94310-10160
|
|||
| 5 |
Bolt, Flange 6x12
95710-06012-0B
|
$0.56 |
