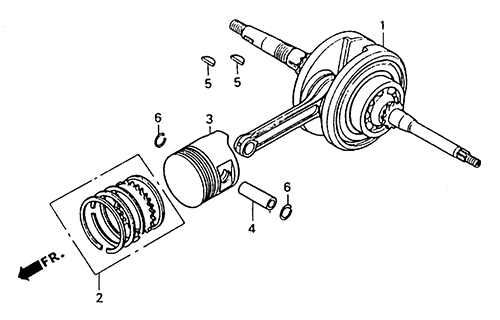

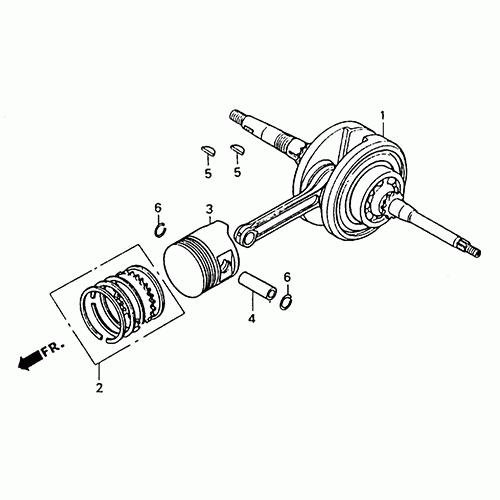

Crankshaft/Piston (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Comp.
13000-SAA0-0000
|
$80.25 | ||
| 2 |
Ring Set, Piston
13011-SBM0-0000
|
|||
| 3 |
Piston
13101-SBM0-0000
|
$34.82 | ||
| 4 |
Pin, Piston
13111-SBM0-0000
|
$4.18 | ||
| 5 |
Key, Woodruff
90701-SAA0-0000
|
|||
| 6 |
Clip, Piston Pin 15mm
13115-SAA0-0000
|
$0.14 |
