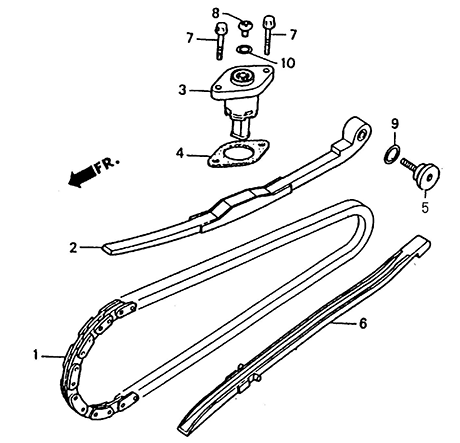

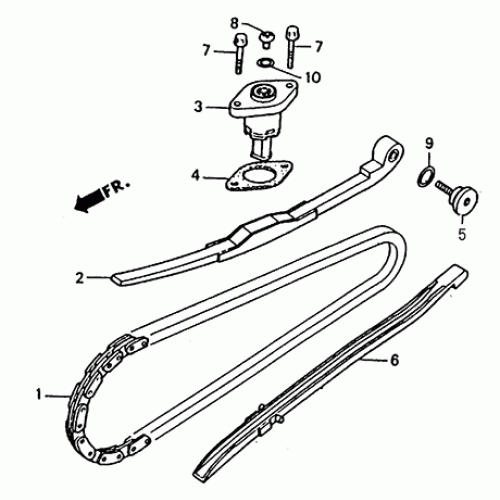

Cam Chain/Tensioner (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Chain, Cam
14401-SAA0-0000
|
$36.02 | ||
| 2 |
Tensioner, Cam Chain
14510-SAA0-0000
|
$30.12 | ||
| 3 |
Lifter Assy., Tensioner
14520-SAA0-0000
|
$12.43 | ||
| 4 |
Gasket, Tensioner Lifter
14523-SAA0-E000
|
|||
| 5 |
Pivot, Cam Chain Tensioner
14531-SBA0-0000
|
$1.95 | ||
| 6 |
Guide Comp., Cam Chain
14610-SAA0-0000
|
$15.06 | ||
| 7 |
Bolt, Flange 6x22
96010-06022-0B
|
$0.70 | ||
| 8 |
Screw, Pan 6x6
93620-06006-0E
|
$0.91 | ||
| 9 |
O-Ring 15.2x1.5
91302-SBA0-0000
|
$0.56 | ||
| 10 |
O-Ring 9.5x1.5
91303-SAA0-0000
|
$0.35 |
