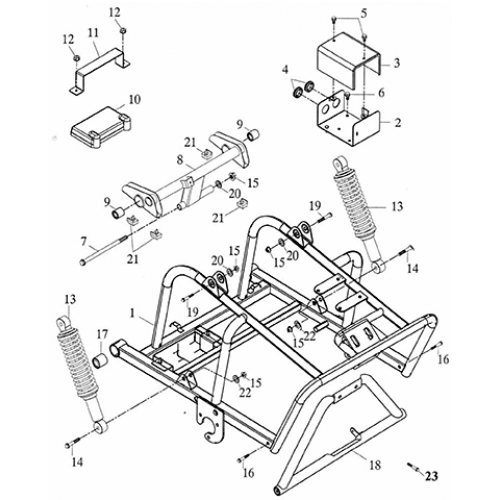

Engine Bracket Assy (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Engine Bracket Ass'Y
50350-193-000
|
|||
| 2 |
Electri Comp.Box(Rev.2)
30210-168-000
|
$25.30 | ||
| 3 |
Electric Comp. Cover(Rev.2)
30211-168-000
|
$22.34 | ||
| 4 |
Rubber Ring
30401-168-000
|
$2.01 | ||
| 5 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 6 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 7 |
Hex Washer Face Bolt, 10*184
96000-10184-12
|
|||
| 8 |
Engine Bracket Ass'Y
50360-193-000
|
|||
| 9 |
Rubber Bushing, 10*30*30
96402-103030
|
$7.76 | ||
| 10 |
Battery Cover
31504-168-000
|
$10.25 | ||
| 11 |
Battery Fixing Plate
31502-168-000
|
$13.18 | ||
| 12 |
Hex Flange Nut, 6mm
94050-06000
|
$0.84 | ||
| 13 |
Rear Cushion, 300mm
52400-168-000
|
$89.94 | ||
| 14 |
Hex Flange Bolt, M10*40
96000-10040-14G
|
$4.02 | ||
| 15 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 16 |
Hex Washer Face Bolt, 8*40
96000-08040-12G
|
$1.59 | ||
| 17 |
Rubber Bush, 12*30*37
96400-123037
|
$7.69 | ||
| 18 |
R. Cross Bar, 25*25*3*468L
54355-193-000
|
|||
| 19 |
Hex Washer Face Bolt, 10*55
96000-10055-14G
|
$4.69 | ||
| 20 |
Plain Washer, 10*22*2
94101-1022020
|
$0.67 |
