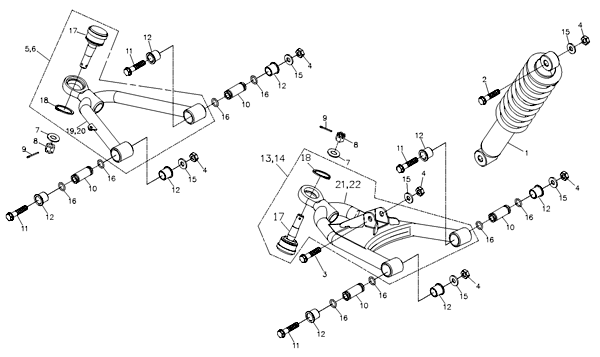

A-arm (Adly ATV Q280)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Cushion Assy, 356mm
51400-225-000
|
|||
| 2 |
Hex Flange Bolt, M10*40
96000-10040-14G
|
$4.02 | ||
| 3 |
Hex Flange Bolt, M10*50
96000-10050-14G
|
$3.97 | ||
| 4 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 5 |
R. Upper Suspension Arm Ass'Y, 10*20*2
51210-256-000
|
$119.00 | ||
| 6 |
L. Upper Suspension Arm Ass'Y, 12.5*2.4
51310-256-000
|
$119.00 | ||
| 7 |
Plain Washer, 12*22*2
94101-1222020A
|
$0.84 | ||
| 8 |
Hex,Slotted Nut, 12mm
94051-12000-17G
|
|||
| 9 |
Cotter Pin, 3*32
94201-30320B
|
|||
| 10 |
Bushing
51350-169-000
|
|||
| 11 |
Hex Washer Face Bolt, 10*65
96000-10065-12G
|
$4.69 | ||
| 12 |
Bush, 17*23.1*19.2
51202-169-000
|
|||
| 13 |
R. Lower Suspension Arm
51610-256-000
|
|||
| 14 |
L. Lower Suspension Arm, 6*12
51510-256-000
|
|||
| 15 |
Copper Plain Washer, 10*20*2
94101-1020020G
|
$0.84 | ||
| 16 |
O-Ring, 12.5*2.4
91312-169-00A
|
$1.51 | ||
| 17 |
Ball Joint
44540-256-000
|
$36.56 | ||
| 18 |
External Cir Clip, 27.9mm
94511-3000S
|
|||
| 19 |
R. Upper Suspension Arm
51200-256-000
|
|||
| 20 |
L. Upper Suspension Arm
51300-256-000
|
