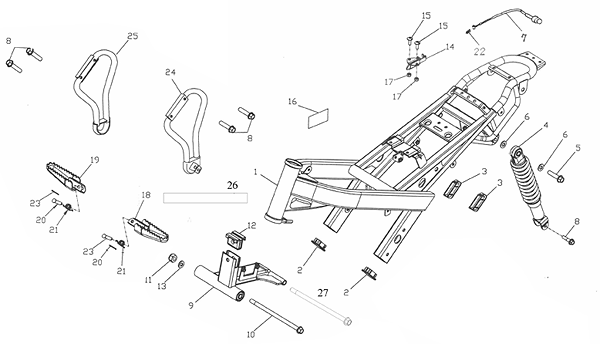

Frame Body (ADLY RT-50 Road Tracer)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-154-000
|
|||
| 2 |
Tube Cap (Short)
96422-154-000
|
|||
| 3 |
Tube Cap (Long)
96421-154-000
|
|||
| 4 |
Rear Cushion Ass'Y (Rev.1)
52400-154-000
|
$92.40 | ||
| 5 |
Hex Washer Face Bolt, 10*48
96000-10048-14G
|
$4.18 | ||
| 6 |
Plain Washer, 10.5*32*3
94101-1032030C
|
$1.67 | ||
| 7 |
Seat Release Cable
77212-154-001
|
|||
| 8 |
Hex Flange Bolt, M8*25
96000-08025-12G
|
$2.01 | ||
| 9 |
Engine Bracket Ass'Y(Rev.1), 162MM
50350-154-000
|
|||
| 10 |
Hex Washer Face Bolt, 10*190 mm
96000-10190-14B
|
|||
| 11 |
Nylon Nut, 10mm*1.25
90350-10000C
|
$1.92 | ||
| 12 |
Stopper Rubber
60352-154-000
|
|||
| 13 |
Plain Washer, 10*22*1.5
94101-1022020
|
$0.75 | ||
| 14 |
Seat Lock Ass'Y
77230-145-001
|
$10.98 | ||
| 15 |
Pan Phillips Bolt, 6*15
93500-06015B
|
$0.67 | ||
| 16 |
I.D. Plate
50110-101-00D
|
|||
| 17 |
Nut Nylon, 6mm
90350-06000C
|
|||
| 18 |
Right Step Plate
50717-158-000
|
|||
| 19 |
Left Step Plate
50718-158-000
|
$13.18 | ||
| 20 |
Cotter Pin, 2*19
94201-20190B
|
$0.42 |
