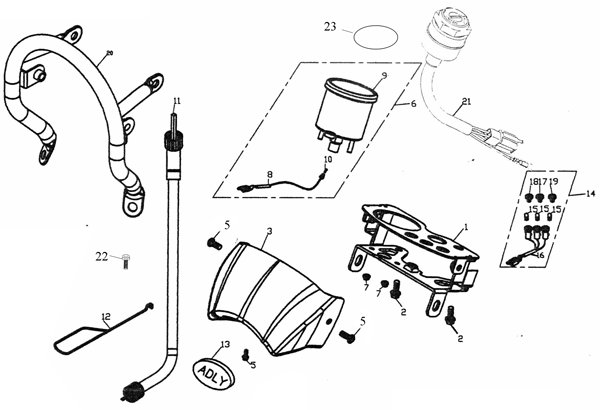

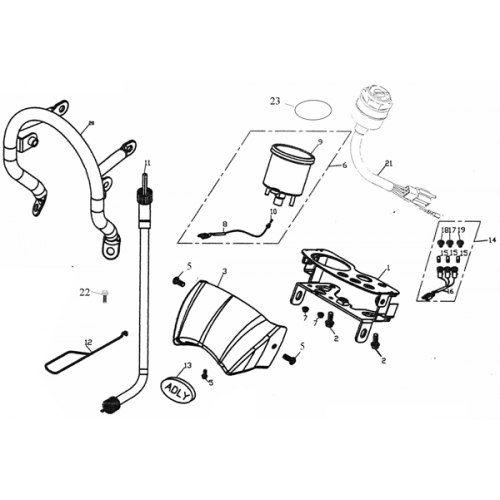

Speedometer (ADLY RT-50 Road Tracer)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Speedometer Bracket(Rev.1)
37210-154-000
|
|||
| 2 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 3 |
Trim.Speedometer Lid(Black), Available in Black and Yellow
64211-154-000
|
$5.86 | ||
| 4 |
Hex Flange Nut With Serration, 5mm
94050-05000C
|
$0.60 | ||
| 5 |
Pan Phillips Bolt, 6*15
93800-06015S
|
$3.35 | ||
| 6 |
Speedometer Ass'Y
37200-154-001
|
|||
| 7 |
Hex Nut, 5mm
94001-05000C
|
$0.67 | ||
| 8 |
Speedometer Wire Harness
37256-154-000
|
|||
| 9 |
Speedometer Body
37220-154-000
|
|||
| 10 |
Bulb, 12V2W
34908-154-000
|
|||
| 11 |
Speedometer Cable
44830-154-000
|
|||
| 12 |
Speedometer Cable Bracket
44831-118-001
|
$3.35 | ||
| 13 |
Adly Poly Sticker
87700-888-00Z
|
|||
| 14 |
Indicator Light Ass'Y
37250-154-000
|
|||
| 15 |
Bulb, 12V1.7W
34908-101-000
|
$2.51 | ||
| 16 |
Indicator Light Harness
37257-154-000
|
|||
| 17 |
Neutral Indicator Cover
37253-154-000
|
$7.32 | ||
| 18 |
Indicator Signal Cover
37254-154-000
|
$8.05 | ||
| 19 |
Light Cover
37255-154-000
|
|||
| 20 |
Head Light Bracket
51602-154-000
|
$27.68 |
