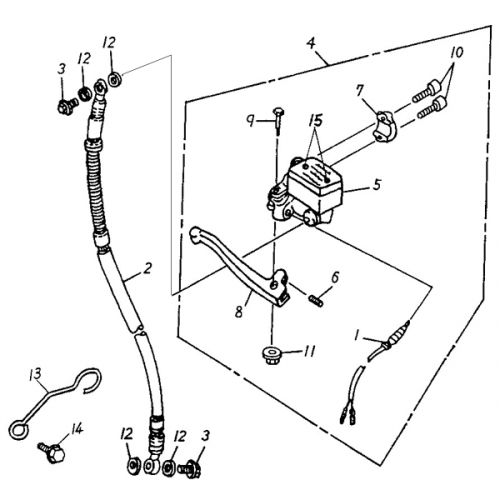

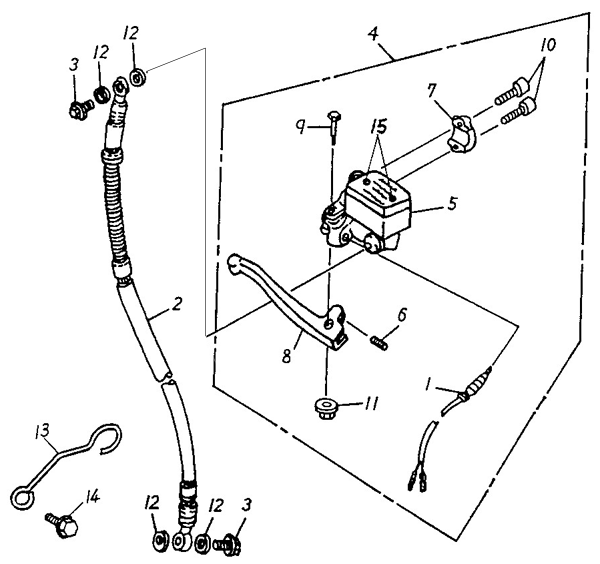

Front Master Cylinder (ADLY RT-50 Road Tracer)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
R.Brake Switch Wire
35340-158-000
|
|||
| 2 |
Brake Hose
45450-154-000
|
|||
| 3 |
Brake Hose Fix Bolt, 10*22
45456-107-000
|
$2.43 | ||
| 4 |
Master Cylinder Sub Ass'Y
45500-154-000
|
|||
| 5 |
Master Cylinder Sub
45510-107-000
|
$54.57 | ||
| 6 |
Lever Reset Spring
45515-107-000
|
$2.01 | ||
| 7 |
Master Cylinder Bracket
53174-107-000
|
$7.32 | ||
| 8 |
Right Lever
53175-107-000
|
$13.05 | ||
| 9 |
Right Lever Set Bolt, 6*30
90115-107-000
|
$3.77 | ||
| 10 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 11 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 12 |
Copper Plain Washer, 10*15*1.2
94103-1015012
|
$2.05 | ||
| 13 |
Brake Hose Bracket
45451-118-000
|
$2.43 | ||
| 14 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 15 |
Flat Head Screw, 4*9
45465-107-000
|
$4.18 |
