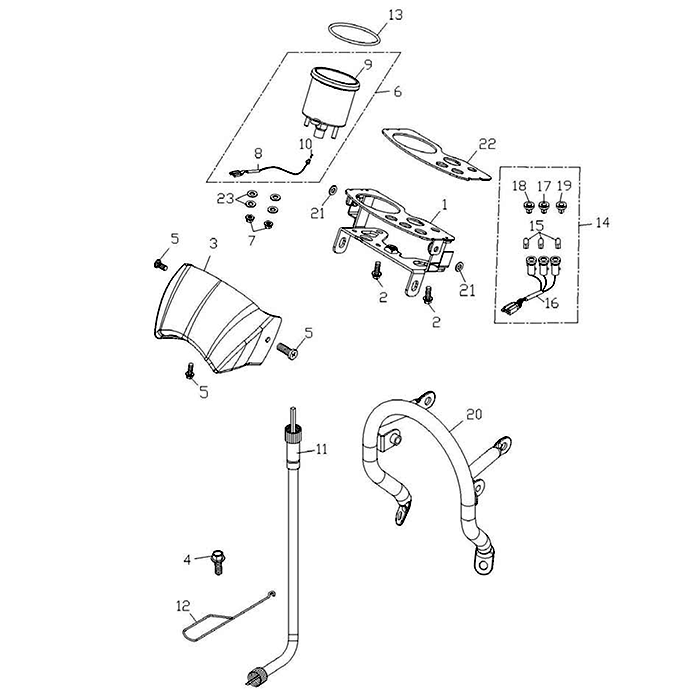

Speedometer
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Speedometer Bracket(Rev.1)
37210-154-000
|
|||
| 2 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 3 |
TRIM.SPEEDOMETER LID (RED)
64211-154-000RD
|
|||
| 3 |
TRIM.SPEEDOMETER LID(BLACK)
64211-154-000BK
|
|||
| 3 |
TRIM.SPEEDOMETER LID(YELLOW)
64211-154-000YL
|
|||
| 4 |
Hex Bolt, 6*18
92000-06018-16K
|
|||
| 5 |
Pan Phillips Bolt, 6*15
93800-06015S
|
$3.35 | ||
| 6 |
SPEEDOMETER ASSY
37200-154-001BK
|
|||
| 7 |
Hex Nut, 5mm
94001-05000C
|
$0.67 | ||
| 8 |
Speedometer Wire Harness
37256-154-000
|
|||
| 9 |
SPEEDOMETER BODY
37220-154-000BK
|
|||
| 10 |
Bulb, 12V2W
34908-154-000
|
|||
| 11 |
Speedometer Cable
44830-154-000
|
|||
| 12 |
Speedometer Cable Bracket
44831-118-001
|
$3.35 | ||
| 13 |
Rubber Strip, 50.1*5.3
91350-145-000
|
$2.01 | ||
| 14 |
Indicator Light Ass'Y
37250-154-000
|
|||
| 15 |
Bulb, 12V1.7W
34908-101-000
|
$2.51 | ||
| 16 |
Indicator Light Harness
37257-154-000
|
|||
| 17 |
Neutral Indicator Cover
37253-154-000
|
$7.32 | ||
| 18 |
Indicator Signal Cover
37254-154-000
|
$8.05 |
