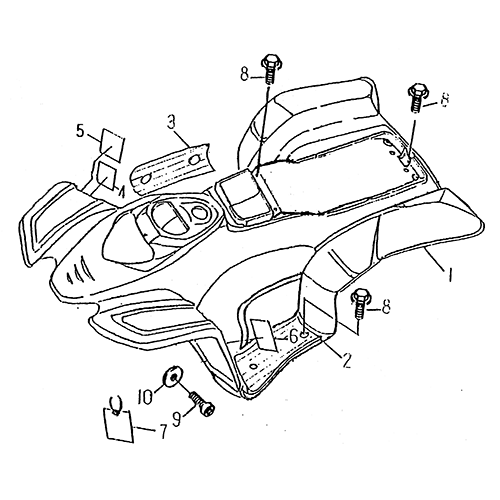

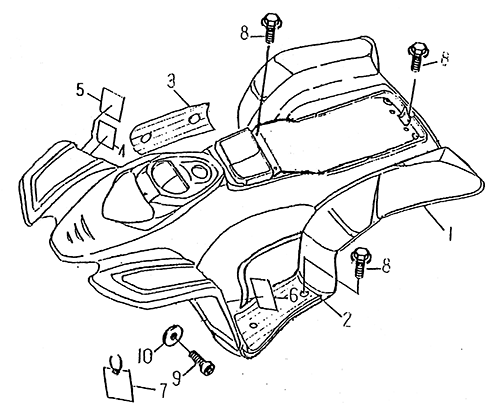

Front Fender (LRX/SMC ATV 50 mini)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Side Cover (Blue)
51171-SK2-0004
|
|||
| 1 |
Side Cover (Red)
51171-SK2-00
|
|||
| 1 |
Side Cover (Yellow)
51171-SK2-0003
|
|||
| 2 |
MAT L
53483-SK2-00
|
$20.99 $15.74 | ||
| 3 |
MAT R
53484-SK2-00
|
$20.99 $15.74 | ||
| 4 |
LABEL, WARNING 3 (TIRE)
56576-SK2-00
|
$8.30 $6.22 | ||
| 5 |
LABEL, WARNING 2 (AGE)
56578-SK2-00
|
$2.79 $2.09 | ||
| 6 |
LABEL, WARNING 1 (OPERATION)
56781-SK2-00
|
$11.85 $8.89 | ||
| 7 |
ATV WARN TAG SPORT
56782-RAM-00
|
|||
| 8 |
BOLT, HEXAGON WITH WASHER
96218-06016-B
|
$1.19 $0.89 | ||
| 9 |
SCREW, PAN HEAD
96318-06012-B
|
$0.70 $0.52 | ||
| 10 |
WASHER,FLANGE
97321-061825-B
|
$0.56 $0.42 |
