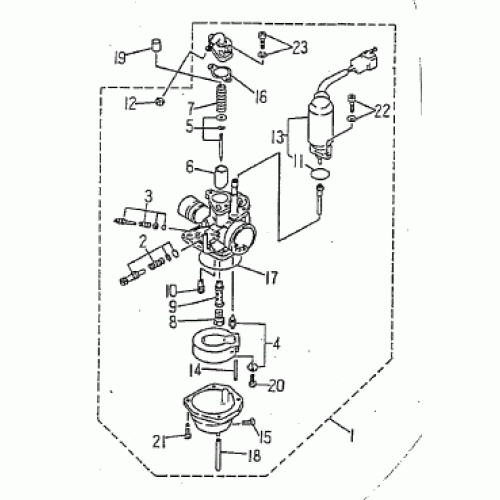

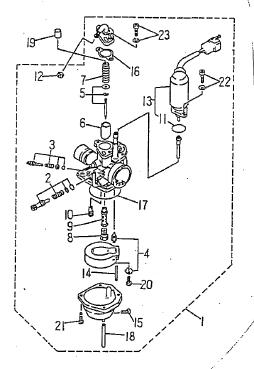

CARBURETOR (Kasea Skyhawk 90 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CARBURETOR ASSEMBLY
13201-NAN-00
|
|||
| 2 |
THROTTLE SCREW SET
13203-NAF-00
|
$6.85 | ||
| 3 |
AIR SCREW SET
13204-NAF-00
|
$6.82 | ||
| 4 |
NEEDLE VALVE SET
13207-NAF-00
|
$18.85 | ||
| 5 |
NEEDLE SET
13211-NAF-00
|
$11.16 | ||
| 6 |
VALVE THROTTLE
13212-NAF-00
|
$18.83 | ||
| 7 |
SPRING, THROTTLE STOP
13233-NAF-00
|
$2.19 | ||
| 8 |
JET, MAIN (#82.5)
13240-NAN-00
|
$11.16 | ||
| 9 |
NOZZLE, MAIN
13241-NAF-00
|
$11.16 | ||
| 10 |
JET, PILOT (#20)
13242-NCF-00
|
$11.74 | ||
| 11 |
O-RING
13247-NAF-00
|
$4.23 | ||
| 12 |
NUT, CABLE ADJUSTER
13261-NAF-00
|
$0.91 | ||
| 13 |
PLUNGER, STARTER
13271-NAF-00
|
|||
| 14 |
PIN, FLOAT
13286-NAF-00
|
$1.51 | ||
| 15 |
PLUG, DRAIN
13291-NAF-00
|
$1.45 | ||
| 16 |
GASKET, CARBURETOR
13296-NAF-00
|
$0.85 | ||
| 17 |
Float Chamber Seal
13297-NAF-00
|
|||
| 18 |
PIPE
13298-NAF-00
|
$0.82 | ||
| 19 |
COLLAR (11mm)
93510-111414
|
$1.19 | ||
| 20 |
SCREW, PAN HEAD
96310-03006-C
|
$0.68 |
