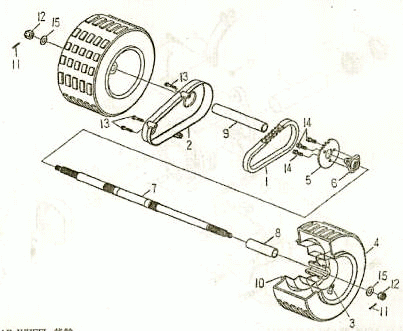

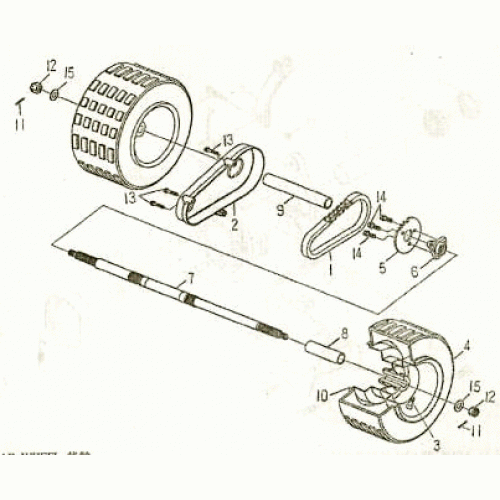

REAR WHEEL (Kasea Skyhawk 50mini Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CHAIN 415H*40L
25741-SK2-00
|
$26.55 | ||
| 2 |
DRIVE CHAIN CASE
32191-SK2-00
|
$12.55 | ||
| 3 |
VALVE, RIM
42570-RAM-00
|
$3.49 | ||
| 4 |
Tire 145x70-6
42590-SK2-00
|
$54.03 | ||
| 5 |
SPROCKET, DRIVEN 415-21T
42812-SK2-00
|
$18.83 | ||
| 6 |
COLLAR, SPROCKET
42821-SK2-00
|
$23.85 | ||
| 7 |
AXLE, WHEEL
42835-SK2-00
|
$77.88 | ||
| 8 |
SPACER, BEARING L
42836-SK2-00
|
$4.18 | ||
| 9 |
SPACER, BEARING R
42837-SK2-00
|
$4.18 | ||
| 10 |
WHEEL, REAR
42880-SK2-00
|
$42.02 | ||
| 11 |
PIN, COTTER 2.9*25
90240-29025-B
|
$0.35 | ||
| 12 |
NUT, CASTLE
95321-142215-C
|
$4.21 | ||
| 13 |
BOLT, FLANGE
96414-06022-B
|
$0.68 | ||
| 14 |
BOLT, FLANGE
96414-08012-B
|
$1.26 | ||
| 15 |
WASHER, PLATE 14.7*25.7*2
97201-142620-C
|
$1.05 |
