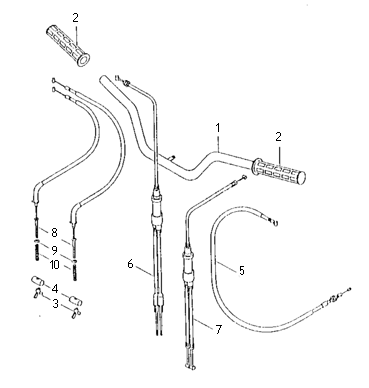

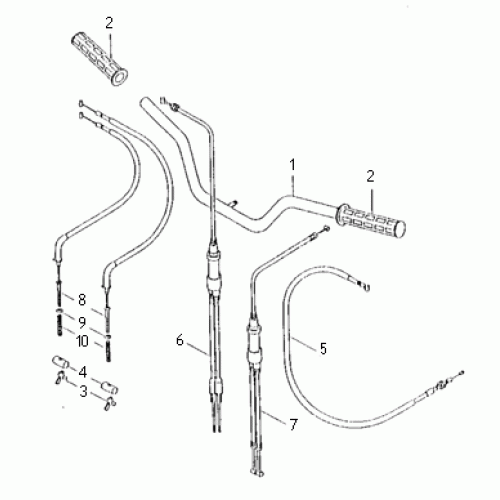

Handlebar & Cables (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
HANDLEBAR
46110-RAM-01
|
$46.82 | ||
| 2 |
GRIP Set
46240-RAM-00
|
$11.30 | ||
| 3 |
NUT,ADJUST
61379-SK9-00
|
$2.79 | ||
| 4 |
PIN, FIXTURE
61389-NAF-00
|
$2.80 | ||
| 5 |
CABLE,CLUTCH
61420-CBT-00
|
$26.36 | ||
| 6 |
CABLE,THROTTLE
61620-CBT-00
|
$19.46 | ||
| 7 |
CABLE,CHOKE
61720-CBT-00
|
$15.06 | ||
| 8 |
CABLE, BRAKE
61820-RAM-00
|
$32.01 | ||
| 9 |
CIRCLIP 6*0.8
97011-06008-B
|
$0.42 | ||
| 10 |
SPRING,COMPRESSION
97501-12087-B
|
$1.39 |
