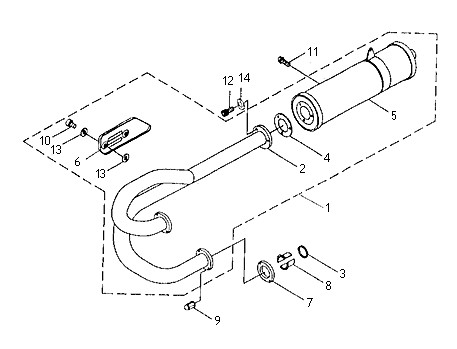

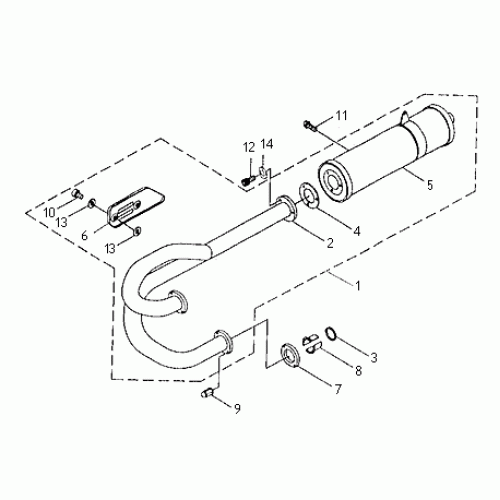

Exhaust Muffler (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
EXHAUST MUFFLER ASS'Y
31610-CBT-01
|
$142.22 | ||
| 2 |
PIPE,EXHAUST
31611-CBT-00
|
$57.49 | ||
| 3 |
GASKET, EXHAUST PIPE
31613-CHP-00
|
$5.51 | ||
| 4 |
GASKET, MUFFLER
31614-RAM-00
|
$2.30 | ||
| 5 |
MUFFLER COMP
31617-CBT-01
|
$51.98 | ||
| 6 |
PROTECTOR,EXHAUST
31618-CBT-00
|
$12.55 | ||
| 7 |
JOINT,EXHAUST PIPE
31621-CBT-00
|
$11.14 | ||
| 8 |
COLLAR,EXHAUST PIPE JOINT
31623-CBT-00
|
$5.93 | ||
| 9 |
NUT, FLANGE
95401-081208-B
|
$0.82 | ||
| 10 |
SCREW, PAN HEAD
96316-06010-K
|
$0.68 | ||
| 11 |
BOLT, FLANGE
96414-08016-B
|
$0.68 | ||
| 12 |
BOLT,SOCKET
96510-06020-K
|
$1.39 | ||
| 13 |
WASHER, PLATE
97210-061215
|
$0.70 | ||
| 14 |
WASHER, SPRING 6.5*11*1.5
97301-061115-K
|
$0.28 |
