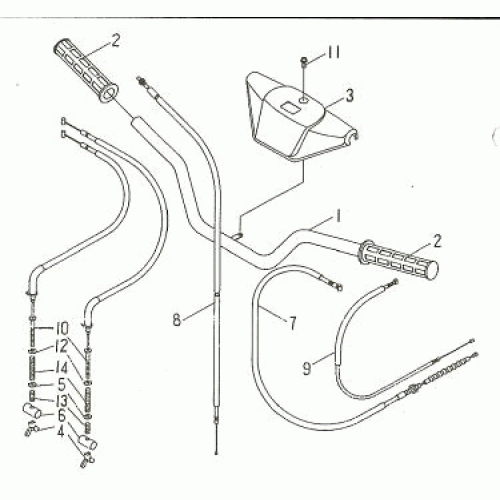

Handlebar & Cables (Kasea Skyhawk 150/170 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
HANDLEBAR
46110-RAM-00
|
$46.82 $35.12 | ||
| 2 |
GRIP Set
46240-RAM-00
|
$11.30 $8.47 | ||
| 3 |
Protector Handlebar Black
55213-RAM-00B
|
$20.08 $15.06 | ||
| 3 |
Protector Handlebar Green
55213-RAM-00G
|
$20.08 $15.06 | ||
| 3 |
Protector Handlebar RED
55213-RAM-RED
|
$20.08 $15.06 | ||
| 3 |
protector Handlebar Yellow
55213-RAM-YL
|
$20.08 $15.06 | ||
| 3 |
PROTECTOR, HANDLEBAR Blue
55213-RAM-BLU
|
$20.08 $15.06 | ||
| 4 |
NUT, ADJUST
61379-RAM-00
|
$2.08 $1.56 | ||
| 5 |
WASHER
61384-RAM-00
|
$3.49 $2.61 | ||
| 6 |
PIN, FIXTURE
61389-NAF-00
|
$2.80 $2.10 | ||
| 7 |
CABLE, CLUTCH
61420-RAM-00
|
$40.50 $30.38 | ||
| 8 |
CABLE, THROTTLE
61620-RAM-00
|
$20.08 $15.06 | ||
| 9 |
CABLE, CHOKE
61720-RAM-00
|
$15.06 $11.30 | ||
| 10 |
CABLE, BRAKE
61820-RAM-00
|
$32.01 $24.01 | ||
| 11 |
SCREW, PAN HEAD WITH WASHER
96312-06016-K
|
$0.96 $0.72 | ||
| 12 |
CIRCLIP 6*0.8
97011-06008-B
|
$0.42 $0.31 | ||
| 13 |
SPRING, COMPRESSION
97501-10042-B
|
$0.70 $0.52 | ||
| 14 |
SPRING, COMPRESSION
97501-12071-B
|
$1.26 $0.94 |
