Handle Switch, Lever (Kasea Skyhawk 150/170 Quad)

Change Assembly

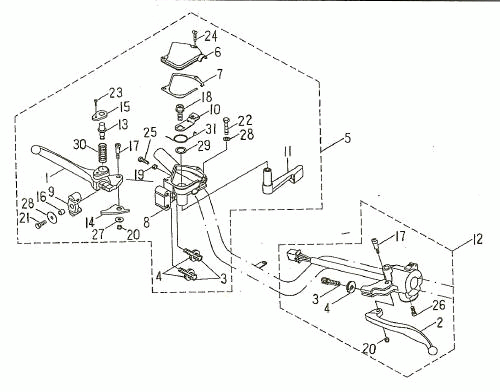

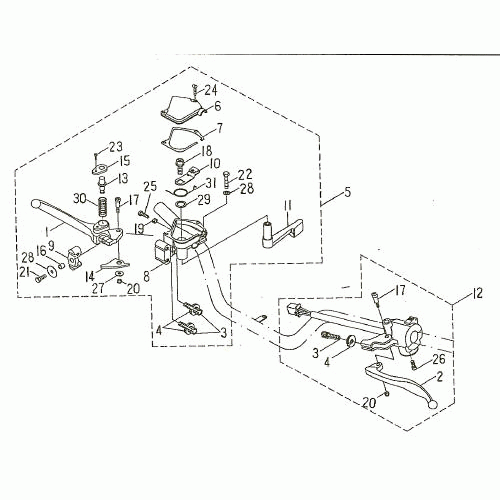

Handle Switch, Lever (Kasea Skyhawk 150/170 Quad)
# Product Name Req'd Price:
1 LEVER, R
45872-RAM-00
$10.46
2 LEVER, L
62912-RAM-00
$10.46
3 BOLT, WIRE ADJUSTING
62916-RAM-00
$4.17
4 NUT, WIRE ADJUSTING
62917-RAM-00
$1.79
5 THROTTLE LEVER ASS'Y
62920-RAM-00
$69.23
6 CAP, THROTTLE
62923-RAM-00
$2.79
7 GASKET, THROTTLE
62924-RAM-00
$0.70
8 THROTTLE LEVER
62925-RAM-00
$36.02
9 JOINT, CABLE
62926-RAM-00
$6.96
10 ARM, THROTTLE
62927-RAM-00
$3.56
11 LEVER, THROTTLE
62928-RAM-00
$10.46
12 HANDLE SWITCH ASS'Y L
62930-RAM-00
$80.96
13 PIN, LOCK
62971-RAM-00
$8.54
14 LOCK, LEVER
62973-RAM-00
$6.96
15 COVER
62976-RAM-00
$6.96
16 COLLAR, LEVER 6.3*8.5*7.4
93560-68507
$2.79
17 BOLT, LEVER
94710-05022-G
$2.79
18 BOLT
94714-08012-G
$1.19
19 NUT, HEXAGON
95201-050804-G
$0.45
20 NUT, NYLON
95311-050805-K
$0.82
Showing 1 to 20 of 31 (2 Pages)
