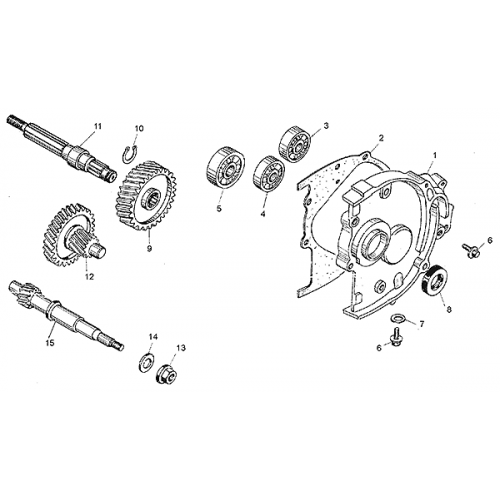

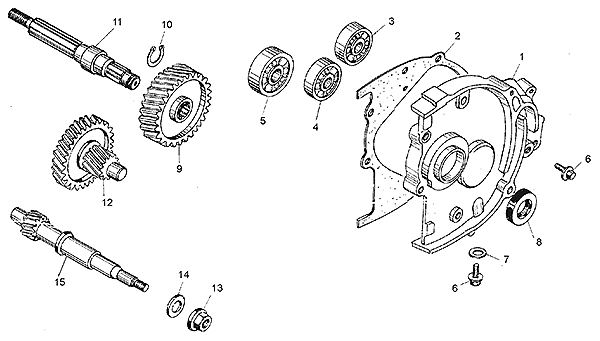

Transmission (Kasea LM150IIR 2003)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
COVER TRANSMISSION
KS125T-1040001
|
$31.38 | ||
| 2 |
GASKET TRANSMISSION COVER
KS125T-1041000
|
|||
| 3 |
BEARING RADIAL BALL E6203
91004-E6203-KAT
|
|||
| 4 |
BEARING RADIAL BALL E6202
91004-E6202-KAT
|
|||
| 5 |
BEARING RADIAL BALL E6204
91004-E6204-KAT
|
|||
| 6 |
BOLT SPECIAL M8X12
KS125T-1040008
|
|||
| 7 |
WASHER 8
KS125T-1040002
|
|||
| 8 |
OIL SEAL 20X32X6
KS125T-1042000
|
|||
| 9 |
GEAR FINAL
KS125T-1040004
|
$34.82 | ||
| 10 |
CIRCLIP EXTERNAL 20
94510-20000
|
$0.63 | ||
| 11 |
Shaft Final
KS150T-1040003
|
$57.49 | ||
| 12 |
SHAFT COMP. COUNTER
KS125T-1043000
|
$57.49 | ||
| 13 |
NUT COMPRESSOR FLANGE M12
KS125T-1040007
|
|||
| 14 |
WASHER 12
KS125T-1040005
|
|||
| 15 |
SHAFT DRIVE
KS125T-1040006
|
$57.49 |
