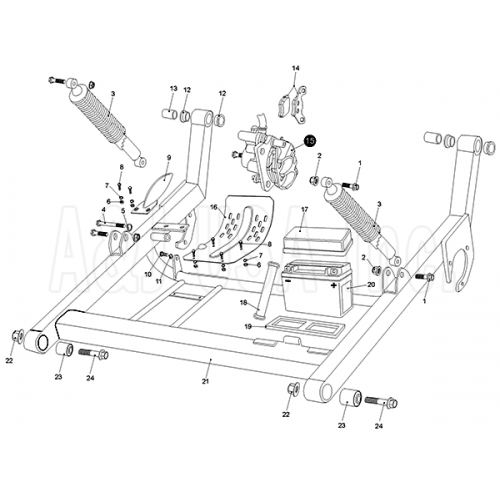

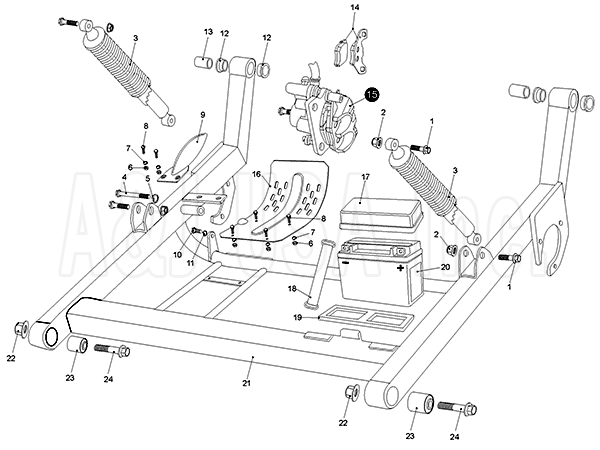

Rear Swing Arm (Kasea LM150IIR 2003)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bolt-Washer M10X1.25X40
9.110.040
|
$2.44 | ||
| 2 |
Nut. Flange Lock M10
9.220.010
|
$2.72 | ||
| 3 |
Absorber Assy. Rr.
6.000.006
|
$93.86 | ||
| 4 |
Bolt, M8X1.25X100
9.108.100
|
$3.14 | ||
| 6 |
Nut, M6
9.200.006
|
$1.05 | ||
| 7 |
Washer Lock D6
9.400.006
|
|||
| 8 |
Bolt M6X16
9.100.616
|
$0.91 | ||
| 9 |
Cover, Disc, Rr
7.010.031
|
|||
| 10 |
Bolt, M8X12
9.100.812
|
|||
| 11 |
Washer Lock 8
9.400.008
|
$1.33 | ||
| 12 |
Bush, Rear Swing Arm
7.010.006
|
$0.70 | ||
| 13 |
Spacer,Center
8.010.028
|
$2.09 | ||
| 14 |
Pad Set, Rr, Brake
7.020.022
|
|||
| 15 |
Caliper Assembly. Rr
6.000.229
|
|||
| 16 |
Guard, Chain, Disc
52100-20127-AB
|
$10.46 | ||
| 17 |
Cover, Battery
7.010.028
|
|||
| 18 |
BATTERY BAND
70000-10125-AB
|
|||
| 19 |
Cushion, Battery Under
7.020.020
|
|||
| 20 |
Battery (Gtx9-Bx)
6.000.055
|
$61.01 | ||
| 21 |
Rr. Swing Arm Comp. Under
2.000.202
|
