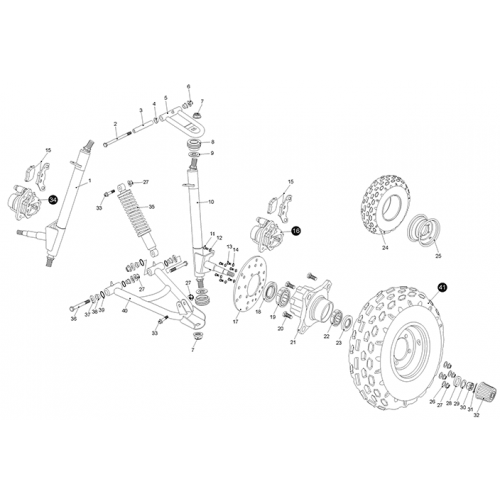

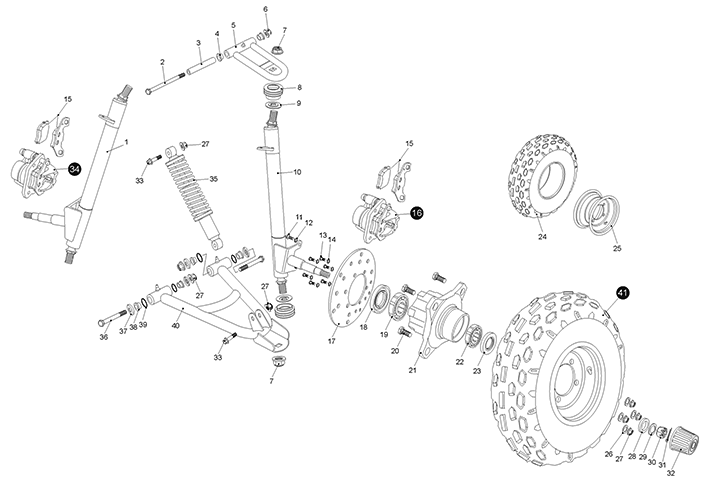

Suspension Arm (Kasea LM150IIR 2000)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Kasea LM150IIR Front Strut Assembly (LH)
2.000.005-L
|
|||
| 2 |
Bolt-Washerm8X1.25X105
9.108.105
|
|||
| 3 |
Spacer, Center
8.010.015
|
|||
| 4 |
Bush, Suspension Arm Assy., Upper
7.010.003
|
|||
| 5 |
Kasea LM150IIR Upper Suspension Arm Assembly
4.000.004
|
$34.82 | ||
| 6 |
Nut, Flange Lock M8
9.220.008
|
|||
| 7 |
Nut Flange Lock M12
9.220.012
|
$2.09 | ||
| 8 |
Front Brake Hose RH 43"
7.020.025
|
$46.82 | ||
| 9 |
Spacer, Ball Head
8.020.053
|
|||
| 10 |
Kasea LM150IIR Front Strut Assembly (RH)
2.000.005-R
|
|||
| 11 |
Boltm8X14
9.100.814
|
$1.88 | ||
| 12 |
Washer Lock 8
9.400.008
|
$1.33 | ||
| 13 |
Bolt, M6X12
9.100.612
|
$1.33 | ||
| 14 |
Washer Lock D6
9.400.006
|
|||
| 15 |
Brake Pads, Rr.
7.020.016
|
$18.83 | ||
| 16 |
Front Brake Caliper. L
6.000.028-L
|
$64.53 | ||
| 17 |
Kasea Front Brake Disc
8.010.054
|
$46.82 | ||
| 18 |
Dust Seal 47X25-7
9.040.002
|
$4.88 | ||
| 19 |
Bearing 6204
9.030.002
|
$0.00 | ||
| 20 |
Bolt, Tirem10X1.25X25
9.710.025
|
