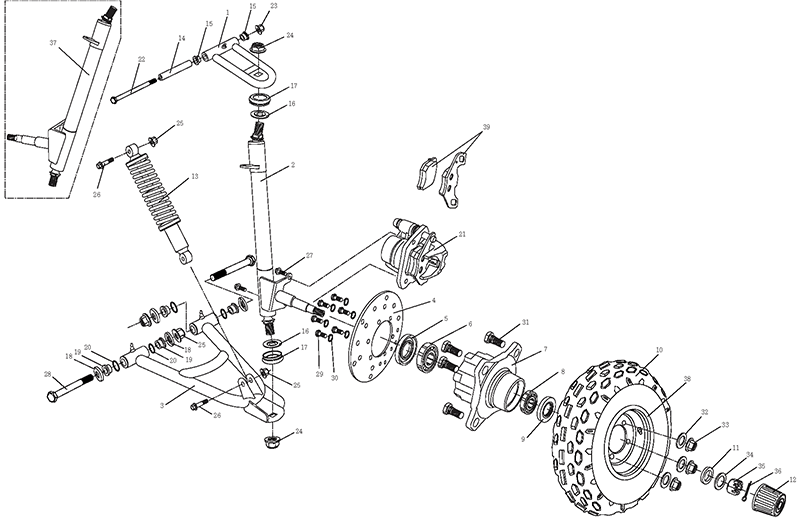

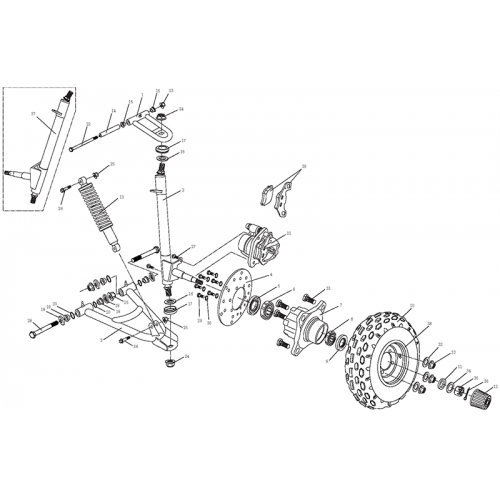

Front Wheel | Suspension Arm (Kasea Adventure Buggy 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Kasea LM150IIR Upper Suspension Arm Assembly
4.000.004
|
$34.82 | ||
| 2 |
Knuckle Support, Lh
2.000.005(LH)
|
|||
| 3 |
Suspension Arm Assy., Lower
4.000.003
|
|||
| 4 |
Kasea Front Brake Disc
8.010.054
|
$46.82 | ||
| 5 |
Dust Seal 47X25-7
9.040.002
|
$4.88 | ||
| 6 |
Bearing 6204
97100-20417-KAS
|
$18.83 | ||
| 7 |
Hub, Fr. Wheel
8.010.055
|
$42.02 | ||
| 8 |
Bearing 6203
97100-20314-KAS
|
$9.06 | ||
| 9 |
Dust Seal 42X28-7
9.040.003
|
|||
| 10 |
Front Tire 19x7-8
6.000.003
|
$92.69 | ||
| 11 |
Spacer, Fr. Hub
8.010.043
|
|||
| 12 |
Cap, Fr. Wheel
7.020.009
|
|||
| 13 |
Absorber Assy. Fr.
6.000.005
|
$69.23 | ||
| 14 |
Spacer, Center
8.010.015
|
|||
| 15 |
Bush, Suspension Arm Assy., Upper
7.010.003
|
|||
| 16 |
Spacer, Ball Head
8.020.053
|
|||
| 17 |
Rubber Dust Cover
7.020.003
|
|||
| 18 |
Dust Cap, Suspension Arm Assy., Lower
8.020.034
|
$1.74 | ||
| 19 |
Bush, Suspension Arm Assy., Lower
7.010.002
|
$2.09 | ||
| 20 |
Rubber Ring 21.2X2.65
9.040.001
|
