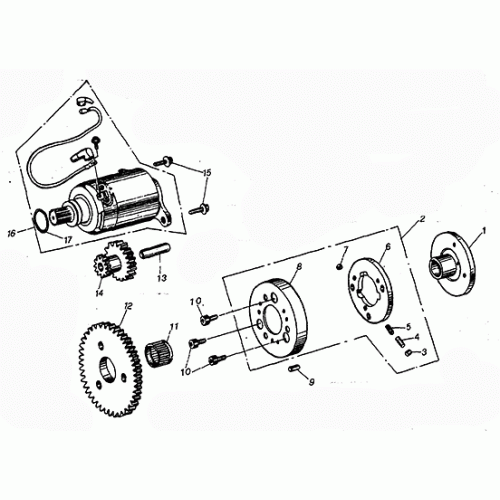

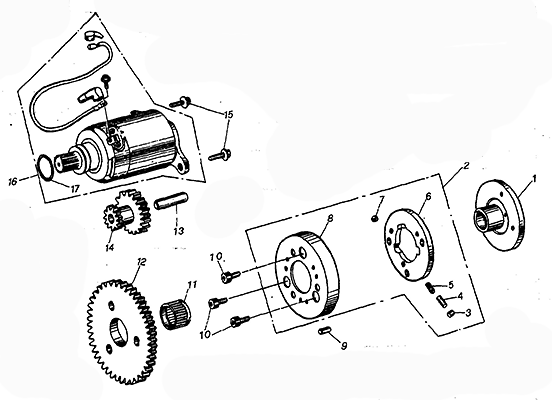

Electric Starter Assembly (Kasea Adventure Buggy 125)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
FLANGE STARTING CLUTCH
KS125T-1060001
|
$6.97 | ||
| 2 |
OUTER COMP. STARTING CLUTCH ASSY.
KS125T-1063000
|
$46.82 | ||
| 3 |
ROLLER
KS125T-1063001
|
|||
| 4 |
CAP STARTING CLUTCH ROLLER SPRING
KS125T-1063002
|
|||
| 5 |
SPRING STARTING CLUTCH ROLLER
KS125T-1063003
|
|||
| 6 |
OUTER COMP. STARTING CLUTCH
KS125T-1063004
|
|||
| 7 |
HOLDER SPRING
KS125T-1063005
|
|||
| 8 |
FLANK COVER COMP. STARTING CLUTCH
KS125T-1063006
|
|||
| 9 |
PIN DOWEL 05X6
KS125T-1060004
|
|||
| 10 |
BOLT M6X11
KS125T-1060006
|
|||
| 11 |
BEARING NEEDLE 28X32X17
KS125T-1061000
|
$6.97 | ||
| 12 |
GEAR COMP. STARTING CLUTCH
KS125T-1062000
|
$12.55 | ||
| 13 |
SHAFT STARTER REDUCTION GEAR
KS125T-1060002
|
$4.11 | ||
| 14 |
GEAR STARTER REDUCTION
KS125T-1060003
|
$15.69 | ||
| 15 |
BOLT FLANGE M6X16
KS125T-1060005
|
$2.72 | ||
| 16 |
Starter Motor Assy
KS125T-1064000
|
$69.23 | ||
| 17 |
O-RING 24.4X3.1
93002-24431-KAT
|
