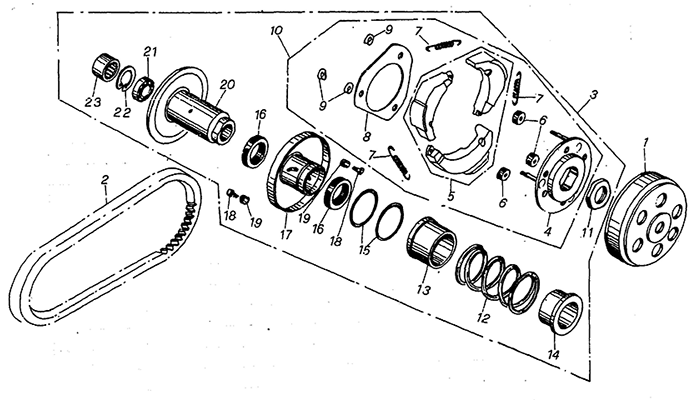

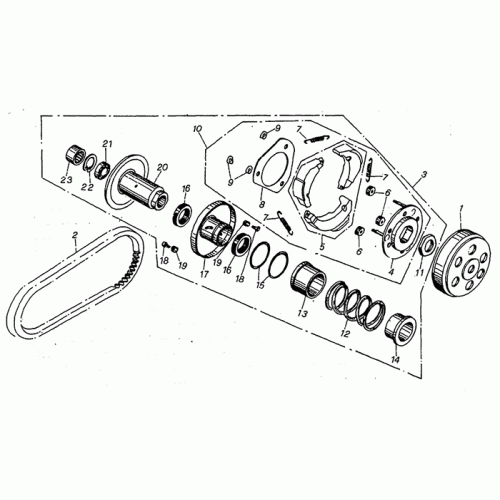

Driven Pulley & Clutch Assy (Kasea Adventure Buggy 125)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
OUTER CLUTCH ASSY.
KS125T-1032000
|
$34.82 | ||
| 2 |
BELT DRIVE
KS125T-1033000
|
$46.82 | ||
| 3 |
Driven Pully Assembly
KS125T-1031000
|
$99.73 | ||
| 4 |
PLATE COMP. DRIVE
KS125T-1031510
|
|||
| 5 |
WEIGHT SET CLUTCH
KS125T-1031530
|
|||
| 6 |
RUBBER CLUTCH DAMPER
KS125T-1031520
|
|||
| 7 |
SPRING CLUTCH
KS125T-1031502
|
|||
| 8 |
PLATE CLUTCH SIDE
KS125T-1031501
|
|||
| 9 |
CIRCLIP
98250-11009-KAT
|
|||
| 10 |
Plate Assy. Driven
KS125T-1031500
|
$46.82 | ||
| 11 |
NUT SPECIAL 28MM
KS125T-1031007
|
|||
| 12 |
SPRING DRIVEN FACE
KS125T-1031002
|
|||
| 13 |
COLLAR, SEAL
KS125T-1031001
|
|||
| 14 |
COLLAR, SPRING
KS125T-1031006
|
|||
| 15 |
O-RING PINION CAP
KS125T-1031005
|
|||
| 16 |
SEAL DRIVEN FACE 34X41X4
KS125T-1031200
|
|||
| 17 |
FACE COMP. ASSY. MOVABLE DRIVEN
KS125T-1031400
|
|||
| 18 |
PIN ROLLER GUIDE
KS125T-1031004
|
|||
| 19 |
ROLLER GUIDE
KS125T-1031003
|
|||
| 20 |
FACE ASSY. DRIVEN
KS125T-1031300
|
