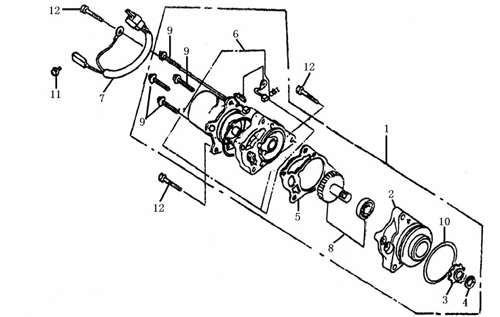

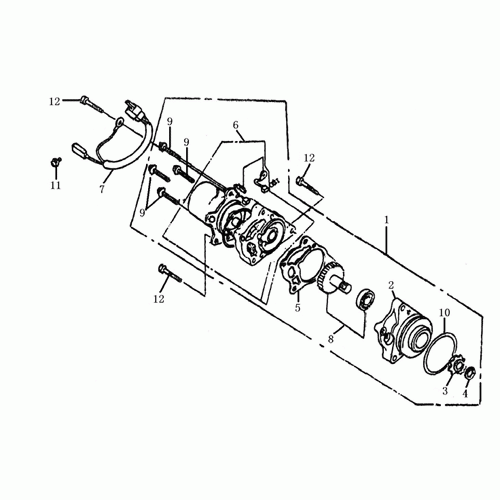

Starting Motor (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Motor Comp., Starter
31210-CDA1-0000
|
$92.69 | ||
| 2 |
Case, Front
31211-CDA1-0000
|
|||
| 3 |
Sprocket, Small
31202-CDA1-0000
|
|||
| 4 |
Clip, 12mm
94510-12000
|
$0.35 | ||
| 5 |
Washer, Sealing
31205-CDA1-0000
|
|||
| 6 |
Motor Comp.
31208-CDA1-0000
|
|||
| 7 |
Cable, Starter Motor
32410-CDA1-0000
|
|||
| 8 |
Gear Comp.
31213-CDA1-0000
|
|||
| 9 |
Screw, Washer
93890-05030-0A
|
|||
| 10 |
O-ring A
91310-CDA1-0000
|
|||
| 11 |
Screw, Washer
93890-04006-0A
|
|||
| 12 |
Bolt
93210-06050-0A
|
$1.05 |
