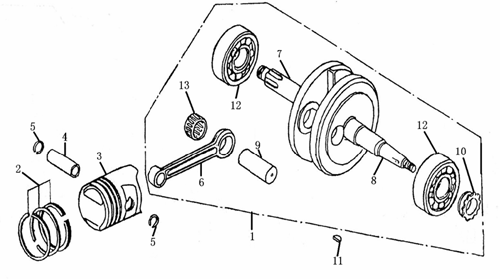

Crankcase/Piston (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Comp.
13000-CDA1-0000
|
$113.46 | ||
| 2 |
Ring, Piston
13011-CDA1-0000
|
$30.19 | ||
| 3 |
Piston
13101-CDA1-0000
|
$30.12 | ||
| 4 |
Pin, Piston
13111-CDA1-0000
|
$4.18 | ||
| 5 |
Circlip, Piston Pin
13115-CDA1-0000
|
$0.14 | ||
| 6 |
Rod, Connecting
13201-CDA1-0000
|
|||
| 7 |
Crankshaft, Right
13310-CDA1-0000
|
|||
| 8 |
Crankshaft, Left
13321-CDA1-0000
|
|||
| 9 |
Pin, Crankshaft
13381-CDA1-0000
|
|||
| 10 |
Drive Sprocket, Timing
14311-CDA1-0000
|
|||
| 11 |
Key, Woodruff
90701-CDA1-0000
|
|||
| 12 |
Bearing
96100-63040-N000
|
|||
| 13 |
Bearing, Needle
91903-CDA1-0000
|
