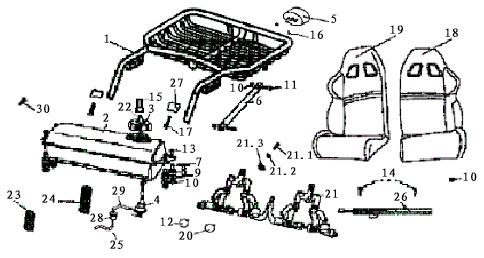

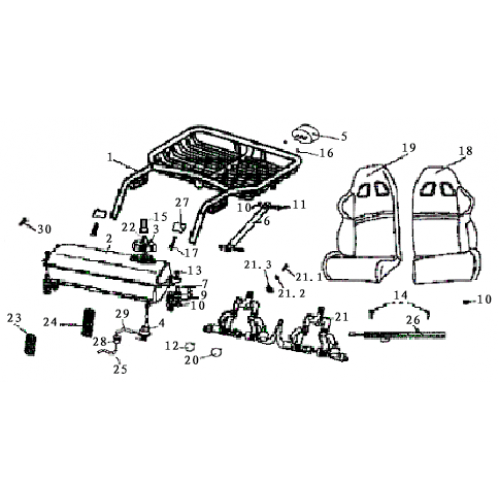

Fuel Tank Assembly (Dazon Raider 250D 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1-4 |
Carrier Comp., Rear
82101-BDE0-0000-B7
|
|||
| 1-2 |
Carrier Comp., Rear
82101-BDE0-0000-B8
|
|||
| 1 |
Carrier Comp., Rear
82101-BDE0-0000-00
|
|||
| 1-5 |
Carrier Comp., Rear
82101-BDE0-0000-B9
|
|||
| 1-3 |
Carrier Comp., Rear
82101-BDE0-0000-B4
|
|||
| 1-1 |
Carrier Comp., Rear
82101-BDE0-0000-B6
|
|||
| 2 |
Tank Comp., Fuel
17510-BDE0-0000-B6
|
|||
| 3 |
Cap, Fuel Tank Comp.
17620-BCC0-0002
|
|||
| 4 |
Petcock, Fuel Tank Comp.
16950-BDE0-0000
|
|||
| 5 |
Tail lamp
33701-BCA0-0010
|
$36.37 | ||
| 6-2 |
Brace, Rear Carrier Support
82102-BCD1-0000-B8
|
|||
| 6 |
Brace, Rear Carrier Support
82102-BCD1-0000-00
|
|||
| 6-5 |
Brace, Rear Carrier Support
82102-BCD1-0000-B9
|
|||
| 6-3 |
Brace, Rear Carrier Support
82102-BCD1-0000-B4
|
|||
| 6-1 |
Brace, Rear Carrier Support
82102-BCD1-0000-B6
|
|||
| 6-4 |
Brace, Rear Carrier Support
82102-BCD1-0000-B7
|
|||
| 7 |
Inner Collar, Fuel Tank
17519-BCA0-0000-0C
|
|||
| 8 |
Rubber Spacer, Fuel Tank
17518-BCA0-0000
|
|||
| 9 |
Washer, Flat
94110-08B01-0C
|
$0.28 | ||
| 10 |
Lock Nut,Flange
90210-08B01-1B
|
