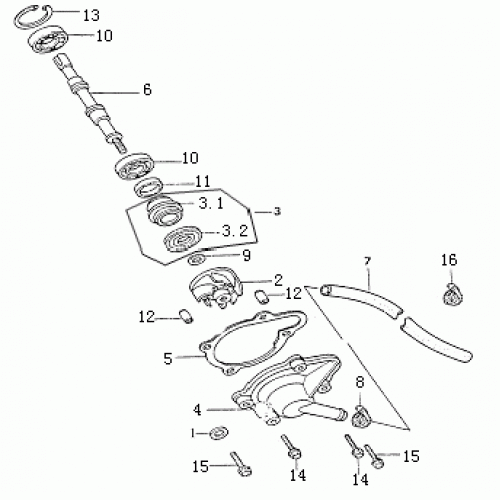

Water Pump (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Washer, Copper
94110-06E01-CU
|
$0.84 | ||
| 2 |
Impeller, Water Pump
19215-SCC0-0000
|
$11.30 | ||
| 3 |
Water Seal ,Mechanical
19217-SBH0-0000
|
$30.12 | ||
| 3.1 |
Body, Water Seal
19218-SBH0-0000
|
|||
| 3.2 |
Washer, Plastic
19219-SBH0-0000
|
|||
| 4 |
Cover, Water Pump
19221-SCC0-0000
|
$18.83 | ||
| 5 |
Gasket, Water Pump Cover
19229-SBH0-0000
|
$2.79 | ||
| 6 |
Shaft, Water Pump
19231-SCC0-0000
|
$15.69 | ||
| 7 |
Rubber Pipe, Water Outlet
19501-BDE0-0000
|
$54.03 | ||
| 8 |
Clamp
11263-SCC0-1000
|
$5.58 | ||
| 9 |
Washer,Steel
94110-07E02-ST
|
$0.70 | ||
| 10 |
Radial Ball Bearing, 6800
96100-68000
|
$12.55 | ||
| 11 |
Oil Seal
91205-SCC0-0000
|
$9.76 | ||
| 12 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 13 |
Circlip
94520-19000-0E
|
$1.74 | ||
| 14 |
Bolt, Flange
96010-06025-0D
|
|||
| 15 |
Bolt, Flange
96010-06035-0D
|
$1.26 | ||
| 16 |
Clamp
11263-SCC0-2000
|
$5.58 |
