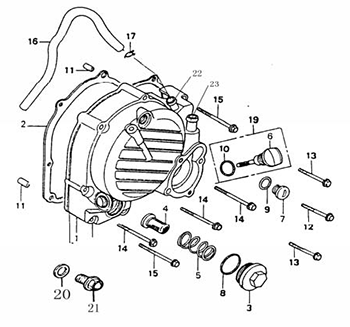

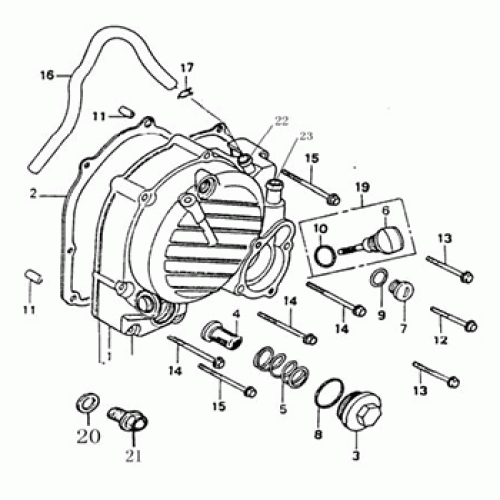

Right Crankcase Cover (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover Comp., R Crankcase
11331-SBH0-0000
|
|||
| 2 |
Gasket, R Crankcase Cover
11394-SBH0-0000
|
|||
| 3 |
Cap, Oil Filter
12361-SBH0-0000
|
|||
| 4 |
Screen, Oil Filter
15421-SBA0-0000
|
$1.39 | ||
| 5 |
Spring, Oil Filter Screen
15426-SBH0-0000
|
|||
| 6 |
Gauge, Oil Level
15651-SBH0-0000
|
$7.25 | ||
| 7 |
Cap,A.C. G.
90036-CAA0-0000
|
|||
| 8 |
O-ring 35*3
91304-SBH0-0000
|
$1.21 | ||
| 9 |
O-ring13.8*2.5
91306-CAAO-0000
|
|||
| 10 |
O-Ring
91305-CAA0-0000
|
$0.35 | ||
| 11 |
Pin, Dowel
94310-10160
|
|||
| 12 |
Bolt, Flange M6*28
96010-06028
|
|||
| 13 |
Bolt, Flange M6*40
96010-06040
|
|||
| 14 |
Bolt, Flange M6*50
96010-06070
|
|||
| 15 |
Bolt, Flange M6*60
96010-06080
|
|||
| 16 |
Tube, Breather
1124A-SBH0-0000
|
|||
| 17 |
Top Panel, Insulator
11241-SBH0-0000
|
|||
| 19 |
Gauge Comp., Oil Level
1565A-SBH0-0000
|
|||
| 20 |
Washer, Copper
94110-12E01-CU
|
|||
| 21 |
Drain Bolt, Gear Box M10*12
90035-SBH0-0000
|
$1.81 |
