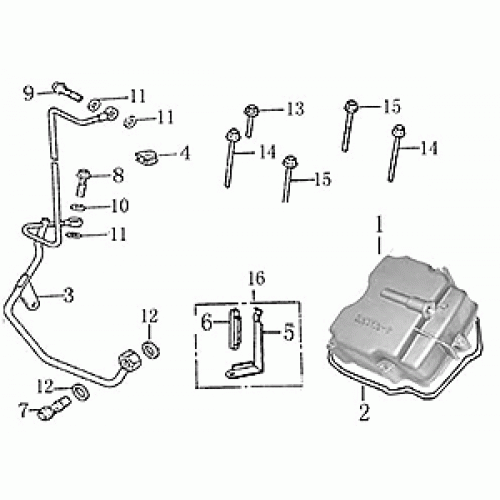

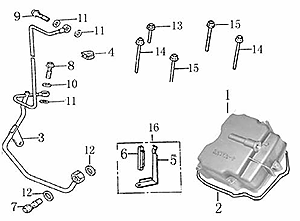

Cylinder Head Cover (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover Comp, Cylinder Head
12310-SCF0-0000
|
|||
| 2 |
Gasket, Head Cover
12391-SCF0-0000
|
|||
| 3 |
Pipe Comp, Oil
15710-SBH0-0000
|
|||
| 4 |
Grommet A, Oil Pipe
15711-SBH0-0000
|
|||
| 5 |
Stay, Oil Pipe
15720-SBH0-0000
|
|||
| 6 |
Rubber, Oil Pipe Stay
15721-SBH0-0000
|
|||
| 7 |
Bolt A, Oil Pass
90161-SBH0-0000
|
|||
| 8 |
Bolt B, Oil Pass
90162-SBH0-0000
|
$2.44 | ||
| 9 |
Bolt C, Oil Pass
90163-SBH0-0000
|
$2.44 | ||
| 10 |
Washer, Cu 8*15*1
90491-08E01-0000-CU
|
|||
| 11 |
Washer, Copper
94110-08E01-CU
|
|||
| 12 |
Washer, Copper
94110-12E01-CU
|
|||
| 13 |
Bolt, Flange M6*25
96010-06025
|
|||
| 14 |
Bolt, Flange M6*50
96010-06050
|
|||
| 15 |
Bolt, Flange M6*45
96010-06045
|
