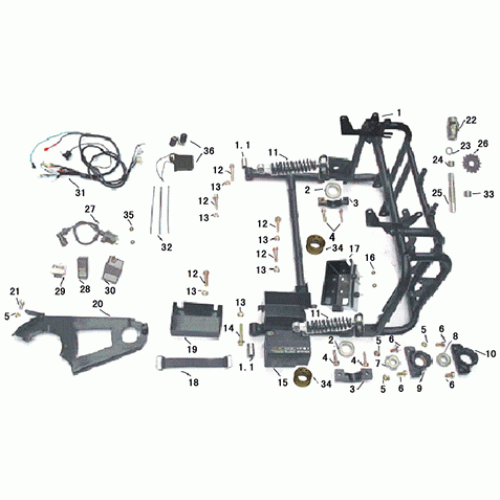

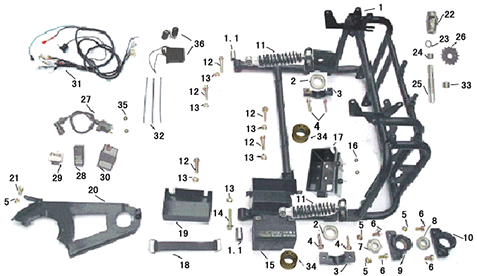

Bottom Rear Swing Arm (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Swing Arm Assy., Bottom Rear
5212A-BDD0-0021
|
|||
| 1.1 |
Rubber Collar, Rear Swing Arm
11102-BDD0-0000
|
|||
| 2 |
Bearing (with covers at two ends)
96100-60050-ZZ
|
$10.98 | ||
| 3 |
Cover, Bearing Base
42702-BDD0-0010
|
$11.30 | ||
| 4 |
Screw, Socket-head
95710-08030-0B
|
$1.05 | ||
| 5 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 6 |
Bolt, Flange
95710-08020-0B
|
$0.70 | ||
| 7 |
Bearing (with covers at two ends)
96100-62030-ZZ
|
$8.72 | ||
| 8 |
Bearing (with covers at two ends)
96100-60040-ZZ
|
$9.41 | ||
| 9 |
Seat,Bearing
41203-BDD0-0000
|
$22.59 | ||
| 10 |
Seat Ⅱ,Bearing
41204-BDD0-0000
|
$22.59 | ||
| 11 |
Shock Absorber ,Rear
53401-BDD0-0000
|
$55.23 | ||
| 12 |
Bolt, Flange
90140-10040-0B
|
$1.74 | ||
| 13 |
Lock Nut, Flange
90210-10B01-1B
|
|||
| 14 |
Battery
31500-TBA0-0000
|
$57.49 | ||
| 15 |
Bolt, Flange
95710-06016-0C
|
$0.70 | ||
| 16 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 | ||
| 17 |
Electric Box
50331-BDD0-0010
|
|||
| 18 |
Band, Battery
50329-BCA0-0000
|
|||
| 19 |
Cover, Electric Box
50320-BDD0-0000
|
