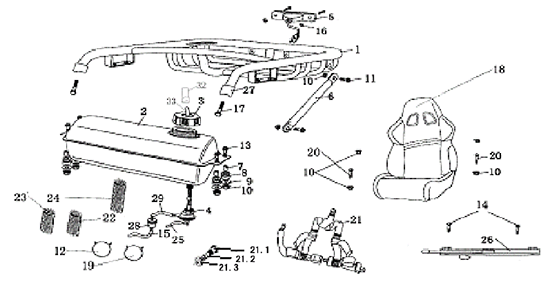

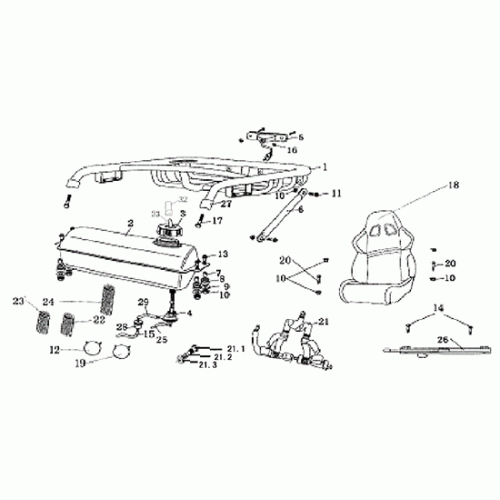

Fuel Tank Ass'y (Dazon Raider 250S 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Carrier Comp., Rear
82101-BDC0-0000
|
|||
| 2 |
Tank Comp.,Fuel
17510-BDE0-0000
|
|||
| 3 |
Cap, Fuel Tank Comp.
17620-BCC0-0002
|
|||
| 4 |
Petcock, Fuel Tank Comp.
16950-BDE0-0000
|
|||
| 5 |
Taillamp
33701-BCC0-0000
|
|||
| 6 |
Brace, Rear Carrier Support
82102-BCC1-0003
|
|||
| 7 |
Inner Collar, Fuel Tank
17519-BCA0-0000-0C
|
|||
| 8 |
Rubber Spacer, Fuel Tank
17518-BCA0-0000
|
|||
| 9 |
Washer, Flat
94110-08B01-0C
|
$0.28 | ||
| 10 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 11 |
Bolt, Flange
95710-08025-0C
|
|||
| 12 |
Circlip, Air Tube
95002-TCB0-0000
|
$0.21 | ||
| 13 |
Bolt, Flange
95710-08030-0C
|
$1.05 | ||
| 14 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 15 |
Tube II,Air
17687-BDE0-0000
|
|||
| 16 |
Lock Nut, Flange
90210-05B01-0C
|
|||
| 17 |
Bolt,Flange
95710-08055-1B
|
|||
| 18 |
Seat Assy.
7720A-BCC0/BCC1-0000
|
|||
| 19 |
Clip (1) ,Pipe
95012-TCB0-0000
|
$0.28 | ||
| 20 |
Bolt, Flange
95710-08050-1B
|
