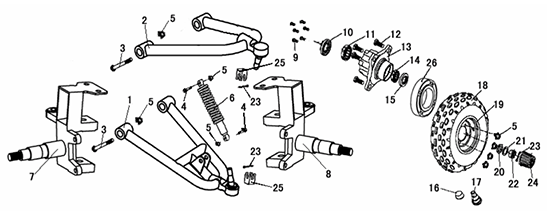

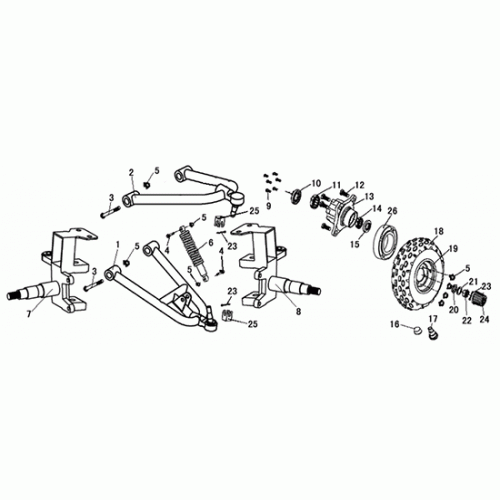

Front Wheel Ass'y (Dazon Raider 250S 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Suspension Arm Comp., Lower
5120A-BDC0-0010
|
|||
| 2 |
Suspension Arm Comp., Upper
5110A-BDC0-0000
|
|||
| 3 |
Bolt,Flange
90140-10065-1B
|
|||
| 4 |
Bolt, Flange
90140-10040-1B
|
$2.09 | ||
| 5 |
Lock Nut, Flange
90210-10B01-2B
|
$1.81 | ||
| 6 |
Shock Absorber Assy., Front
51400-BDC0-0001
|
|||
| 7 |
Strut, Left
50751-BDE0-0011
|
|||
| 8 |
Strut, Right
50752-BDE0-0011
|
|||
| 9 |
Bolt, Flange
95710-06012-0C
|
|||
| 10 |
Seal,Oil
91201-BCA0-0001
|
$4.18 | ||
| 11 |
Bearing
96100-60040-2RS
|
$12.55 | ||
| 12 |
Bolt,Tire M10
44901-BCA0-0000-0C
|
|||
| 13 |
Hub, Front Wheel
4460A-BDE0-0001
|
$69.23 | ||
| 14 |
Bearing
96100-60050-2RS
|
$18.83 | ||
| 15 |
Seal, Oil
91202-BCA0-0000
|
$2.65 | ||
| 16 |
Cap, Valve Stem
42754-BCA0-0000
|
$0.98 | ||
| 17 |
Stem, Valve
42753-BCA0-0000
|
$0.98 | ||
| 18.1 |
Front Tire 21x7-10
44710-BDA0-0000
|
$80.96 | ||
| 18.2 |
Front Tire 21x7-10
44710-BCB0-0000
|
$92.69 | ||
| 19.1 |
Rim ,Front 10-6 (Black )
44705-BDA1-0000-B1
|
