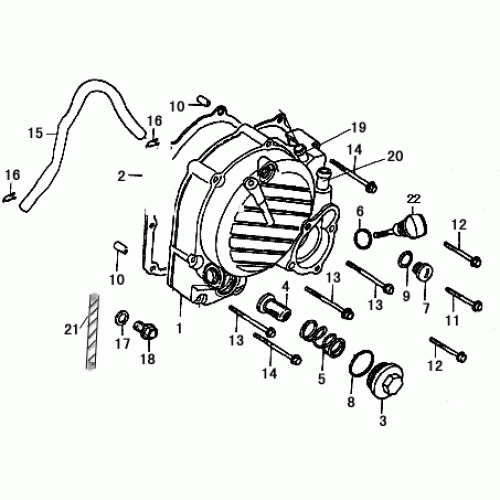

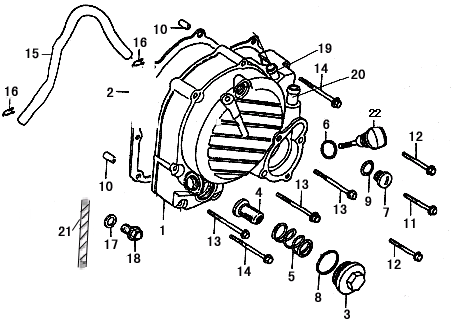

Right Crankcase Cover (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Right Crankcase
11331-SCC0-0000
|
$112.31 | ||
| 2 |
Gasket, Right Crankcase Cover
11394-SCC0-0000
|
$10.46 | ||
| 3 |
Cover, Oil Filter Scrren
12361-SBA0-0000
|
$2.79 | ||
| 4 |
Screen, Oil Filter
15421-SBA0-0000
|
$1.39 | ||
| 5 |
Spring, Oil Filter Screen
15426-SCC0-0000
|
$1.67 | ||
| 6 |
O-Ring
91305-CAA0-0000
|
$0.35 | ||
| 7 |
Cap,A.C. G.
90036-CAA0-0000
|
|||
| 8 |
O-Ring
91301-CAA0-0000
|
$0.70 | ||
| 9 |
O-ring
91306-CAA0-0000
|
$0.70 | ||
| 10 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 11 |
Bolt, Flange
96010-06028-0D
|
$1.26 | ||
| 12 |
Bolt, Flange
96010-06040-0D
|
$1.67 | ||
| 13 |
Bolt, Flange
96010-06070-0D
|
$2.09 | ||
| 14 |
Bolt, Flange
96010-06080-0D
|
$2.09 | ||
| 15 |
Air Tube, Right Crankcase Cover
11241-SCC0-0000
|
|||
| 16 |
Clamp
19604-SBH0-0000
|
$1.74 | ||
| 17 |
Washer, Copper
94110-12E01-CU
|
|||
| 18 |
Bolt, Oil Drain
90035-SCC0-0000
|
$2.79 | ||
| 19 |
Intake, Air
11335-SCC0-0000
|
|||
| 20 |
Water Outlet, Right Crankcase Cover
11333-SCC0-0000
|
