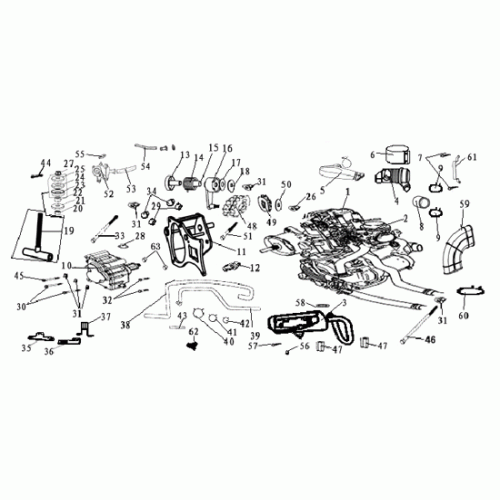

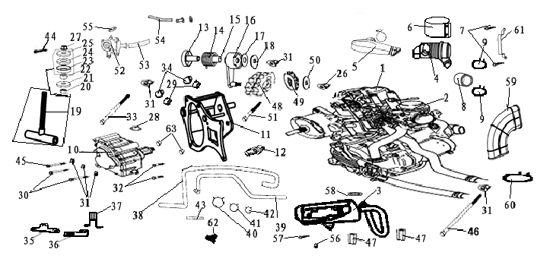

Engine/Air Cleaner (Dazon Raider 250 2005 and Older)

Change Assembly

Engine/Air Cleaner (Dazon Raider 250 2005 and Older)
# Product Name Req'd Price:
1 Engine Assy.
0005Z-SCC0-E010
2 Dazon Go Kart Carburetor Ass'y
1610A-SCC0-0010
$285.55
3 Muffler Assy.
1830A-BDE0-E000
4 Air Cleaner Assy.
1720A-BDE0-E011
5 Connector, Air Cleaner
1721A-BDC0-0001
6 Circlip,Air Cleaner
52157-BDC0-0000
8 Tube
17203-BDC0-0000
9 Circlip,Air Cleaner
17208-SCA4-0000
10 Gearbox Assy.
25000-BCC0-0010
11 Mounting Plate, Gearbox
2489A-BDE0-0010
12 Shaft, Transmission
25410-BDC0-0000
13 Cover, Tensioner
25610-BDC0-0000
14 Spring
25615-BDC0-0000
15 Bush
25612-BDC0-0000
16 Arm, Tensioner
25611-BDC0-0001
17 Washer, Nylon
25613-BDC0-0000
18 Positioner
25614-BDC0-0000
19 Link Comp., Engine Mount
52150-BDE0-0000
20 Nut, Adjust
90293-BDE0-0000-0C
$4.18
21 Washer, Buffer Pad
52155-BDE0-0000-0C
Showing 1 to 20 of 53 (3 Pages)
