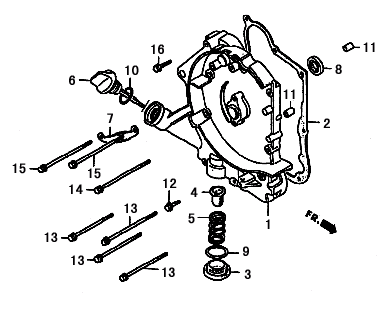

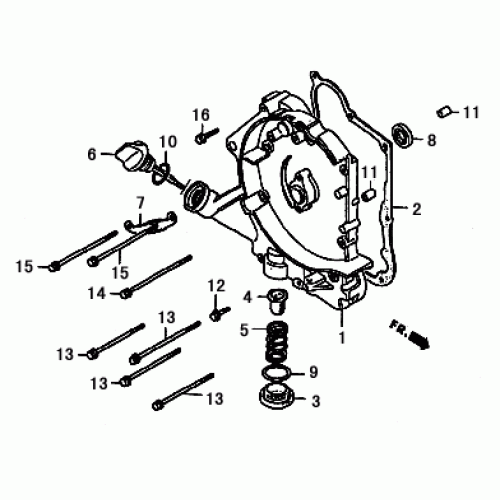

Right Crankcase Cover (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, R. Crankcase
11331-SAA0-0000
|
$52.83 | ||
| 2 |
Gasket, R. Crankcase Cover
11394-SAA0-E000
|
|||
| 3 |
Cover, Oil Filter Scrren
12361-SBA0-0000
|
$2.79 | ||
| 4 |
Screen, Oil Filter
15421-SBA0-0000
|
$1.39 | ||
| 5 |
Spring, Oil Filter Screen
15426-SBA0-0000
|
|||
| 6 |
Gauge, Oil Level
15651-SBA0-0000
|
$2.79 | ||
| 7 |
Clamp, A.C.Generator Cord
32961-SAA0-0000
|
$1.39 | ||
| 8 |
Oil Seal 19.8x30x5
91203-SBA0-0000
|
$10.60 | ||
| 9 |
O-Ring
91301-CAA0-0000
|
$0.70 | ||
| 10 |
O-Ring
91305-CAA0-0000
|
$0.35 | ||
| 11 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 12 |
Bolt, Flange
96010-06032-0B
|
$1.05 | ||
| 13 |
Bolt, Flange 6x95
96010-06095-0B
|
$1.39 | ||
| 14 |
Bolt, Flange 6x100
96010-06100-0B
|
$1.74 | ||
| 15 |
Bolt, Flange 6x110
96010-06110-0B
|
$1.81 | ||
| 16 |
Bolt, Flange 6x40
96010-06040-0B
|
$1.05 |
